234 Upgrade and Maintenance Manual RX2540 M2
Hard disk drives (HDD) and solid state drives (SSD)
Connecting cables from PCIe SSD backplane rear to the PCIe switch

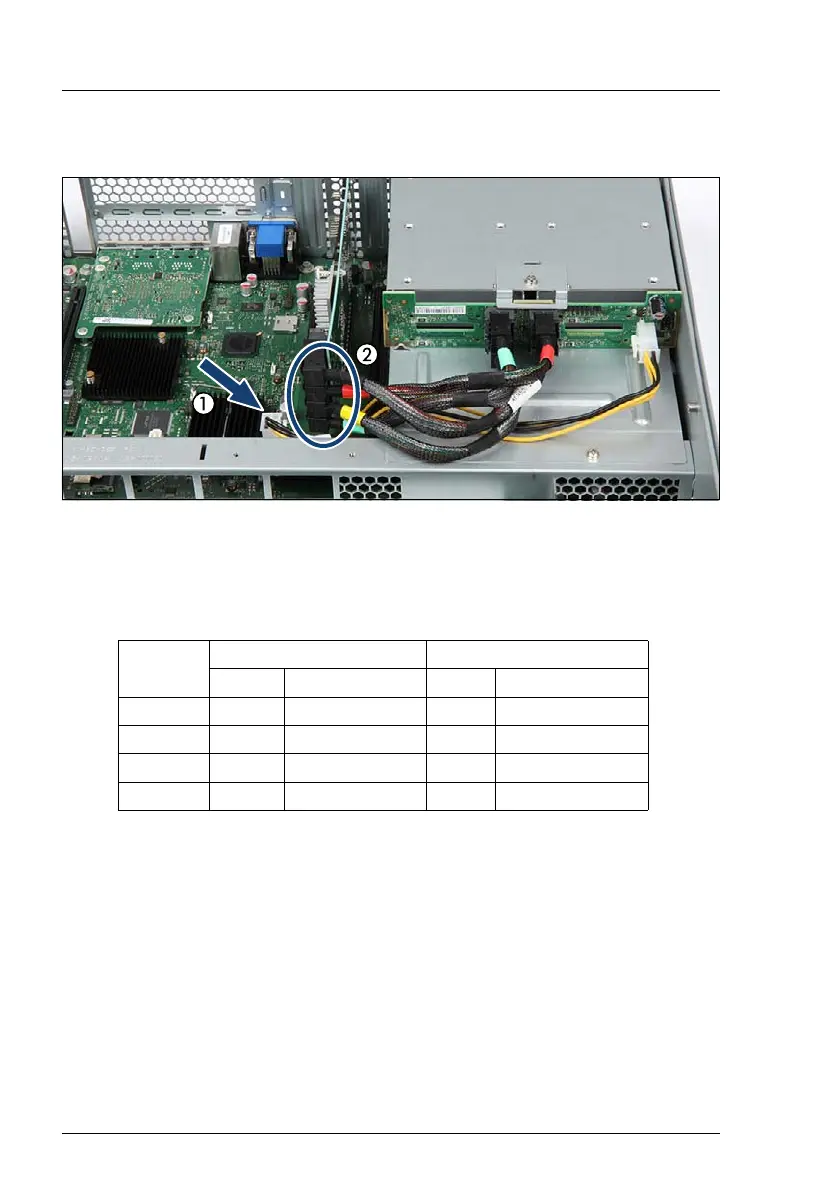

Figure 136: Connecting cables from the 4x 2.5-inch SAS HDD/SSD backplane rear
Ê Connect the power cable from backplane connector X12 (1) to system board
connector PWR 12V 4.
Ê Connect the cables of the cable bundle (2).
7.6.2.6 Concluding steps
Ê "Installing the fan box" on page 399
Ê "Reassembling" on page 73
Ê "Installing 2.5-inch HDD/SSD modules" on page 193, see also figure 93 on
page 192
Ê "Connecting the power cord" on page 79
Ê "Switching on the server" on page 82
Color PCIe SSD backplane PCIe switch
Plug Connector Plug Connector
black P0 X1 P0 P0-X1
red P1 X2 P1 P1-X2
yellow P2 X3 P2 P2-X3
green P3 X4 P3 P3-X4
