RX2540 M2 Upgrade and Maintenance Manual 281
Expansion cards and backup units

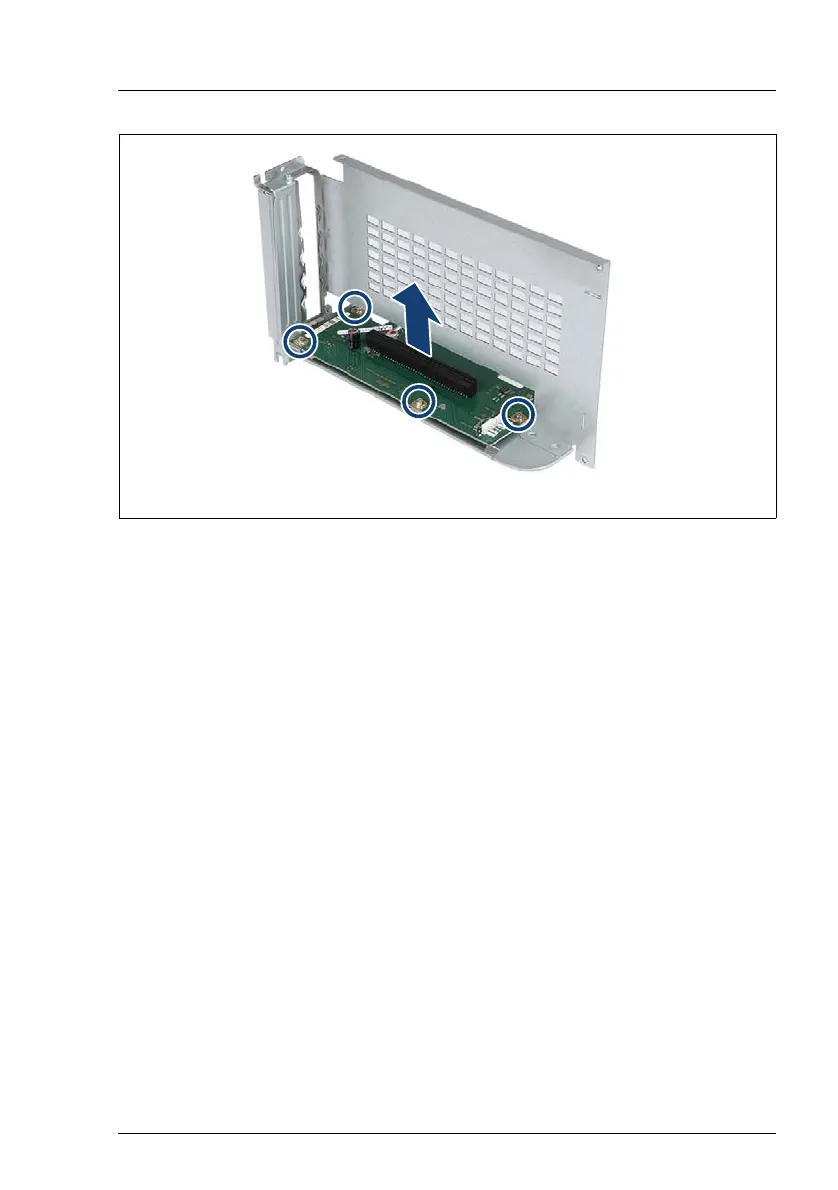

Figure 177: Removing a riser card with one PCIe slots Gen3 x16
Ê Remove four screws (see circles).
Ê Take the riser card out of the riser card holder.
8.5.6.3 Installing the new riser card
Ê Install the new riser card as described in section "Installing a riser card" on
page 264.
Ê Install the expansion card as described in section "Installing a PCIe
expansion card in a riser module" on page 266.
Ê If applicable, install the riser module 1 as described in section "Installing the
riser module 1 (HL)" on page 85.
Ê If applicable, install the new expansion card as described in section
"Installing a PCIe expansion card in a riser module" on page 266.
Ê If applicable, install the riser module 1 as described in section "Installing the
riser module 1 (HL)" on page 85.
Ê If applicable, install the riser module 2 as described in section "Installing the
riser module 2 (HL)" on page 88.
