Fujitsu PRIMERGY RX2540 M2

92 Upgrade and Maintenance Manual RX2540 M2
Basic hardware procedures
4.8.2.2 Removing the riser module 1 (FL)

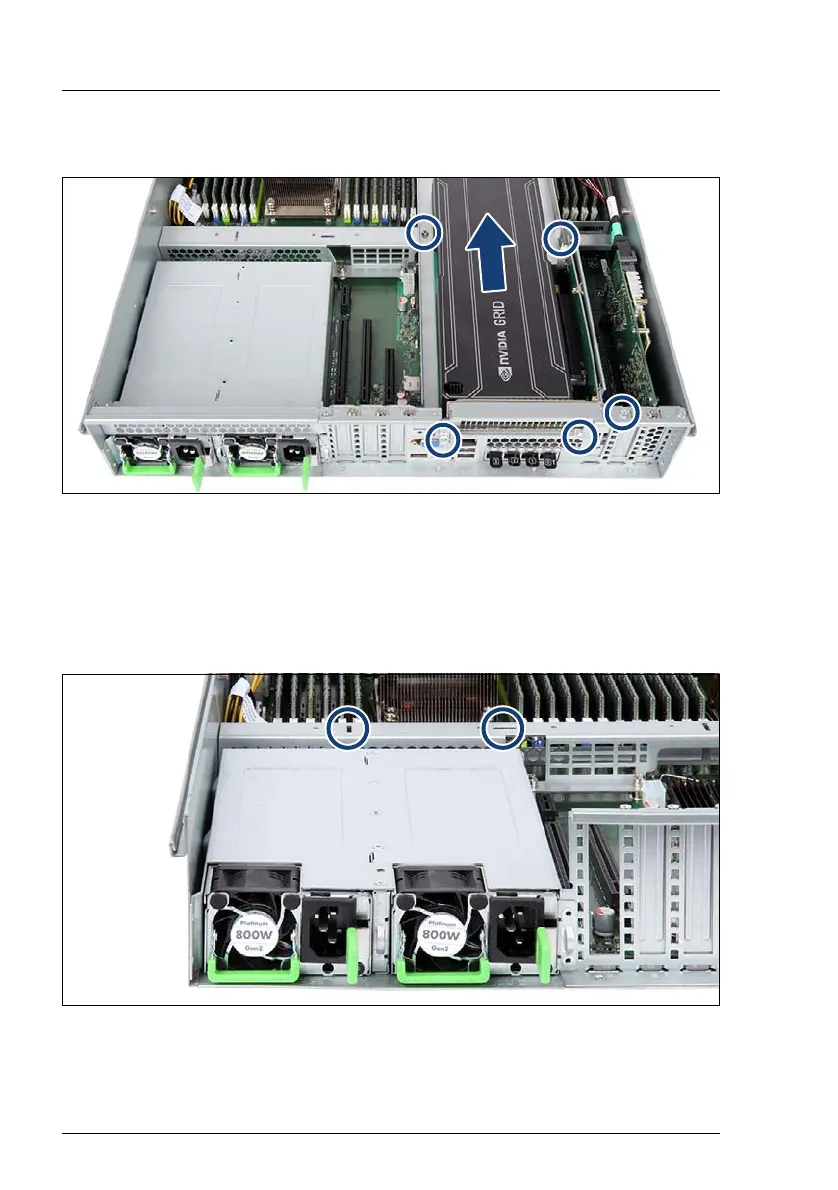

Figure 26: Removing the riser module 1
Ê Remove five screws (see circles).
Ê Carefully take out the riser module.
4.8.2.3 Installing the riser module 2 (FL)
Figure 27: Position of the recesses
Ê Take note of the two recesses in the stabilizer bar (see circles).
