284 Upgrade and Maintenance Manual RX2540 M2
Expansion cards and backup units
8.6.1.2 Removing the slot cover from the riser card holder

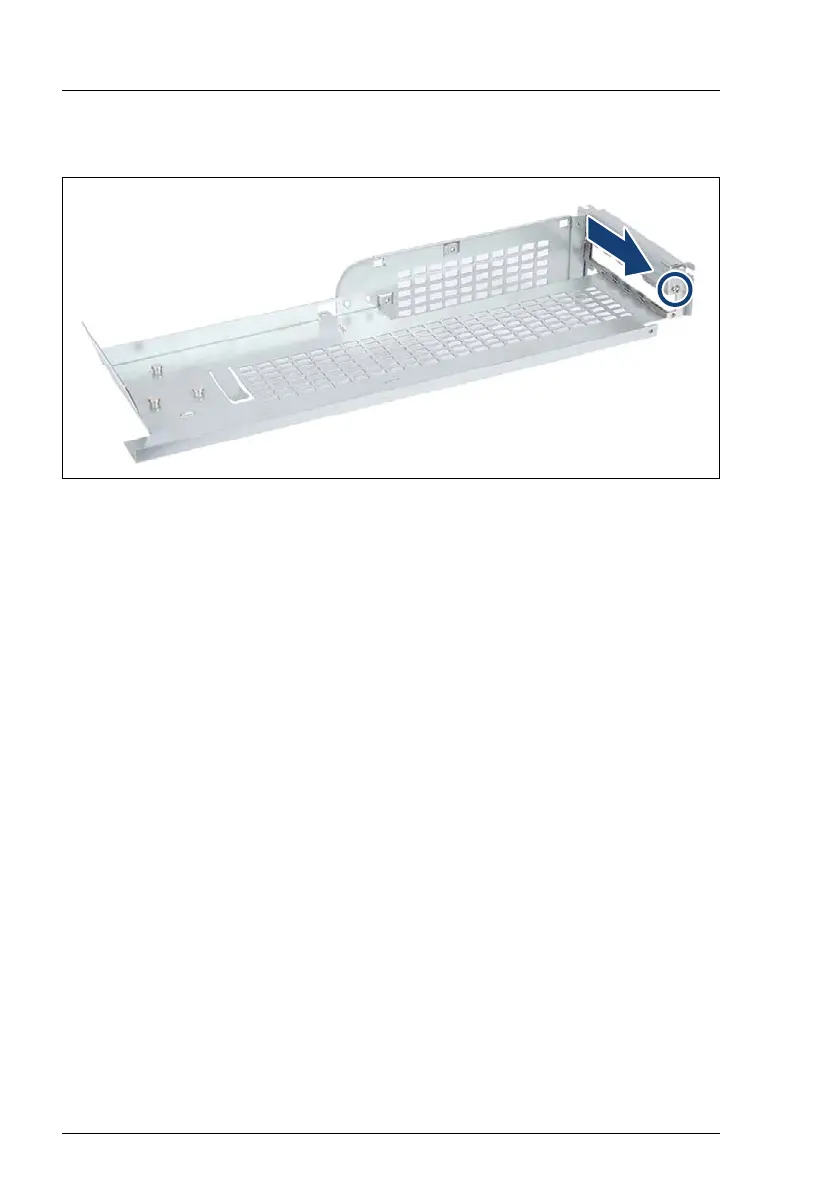

Figure 178: Removing the slot cover from the riser card holder
Ê Remove the screw (see circle).
Ê Remove the slot cover.
V CAUTION!
Take care that the EMC spring remains in its place.
V CAUTION!
Keep the slot cover for future use.
Always replace slot covers into unused PCI slot openings to comply
with applicable EMC regulations and satisfy cooling requirements.
