334 Upgrade and Maintenance Manual RX2540 M2
Expansion cards and backup units

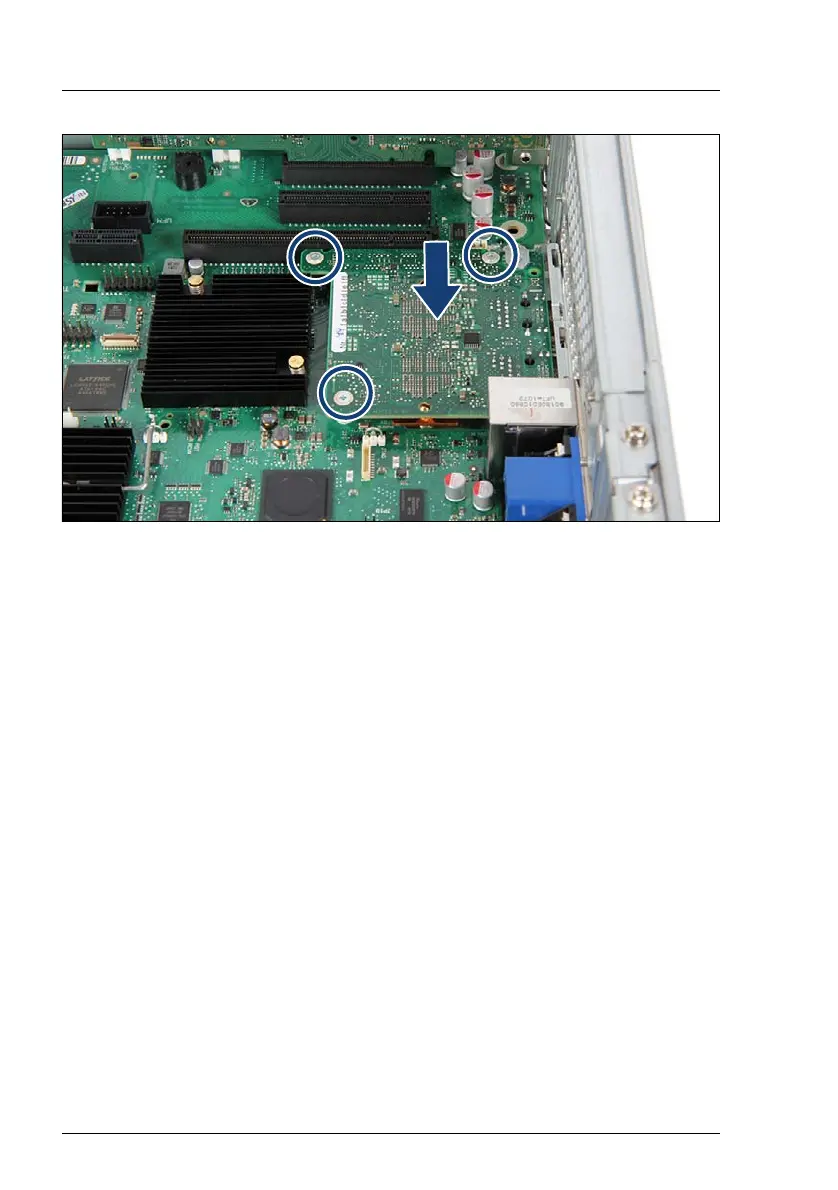

Figure 233: Inserting the DynamicLoM module
Ê Install the DynamicLoM module with the bottom side above.
I For DynamicLoM D3275:
Remove the protective foil.
Ê Fasten it with the three screws on the bolts.
8.8.2.4 Concluding steps
Ê "Reassembling" on page 73
Ê "Connecting the power cord" on page 79
Ê "Switching on the server" on page 82
Ê "Updating the NIC configuration file in a Linux and VMware environment" on
page 118
Ê "Configuring LAN teaming" on page 124
Ê "Enabling SVOM boot watchdog functionality" on page 114
