176 Upgrade and Maintenance Manual RX2540 M2
Hard disk drives (HDD) and solid state drives (SSD)

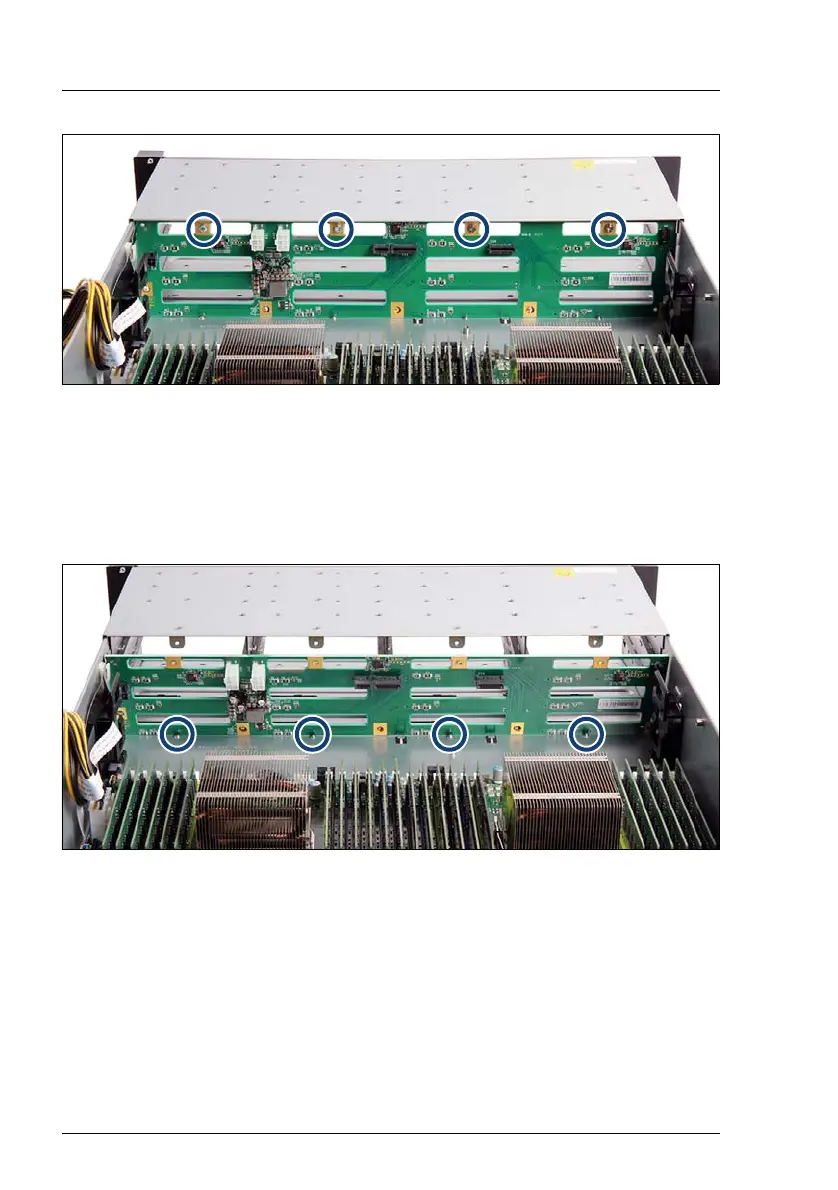

Figure 73: Removing the 12x 3.5-inch HDD backplane
Ê Remove the four screws (see circles).
Ê Take out the HDD backplane at a slight angle (45°).
7.3.3.4 Installing the new 12x 3.5-inch HDD backplane
Figure 74: Installing the 12x 3.5-inch HDD backplane (A)
Ê Position the HDD backplane behind the four stampings into the chassis (see
circles).
