276 Upgrade and Maintenance Manual RX2540 M2
Expansion cards and backup units
8.5.4.4 Installing the slot cover riser module 2

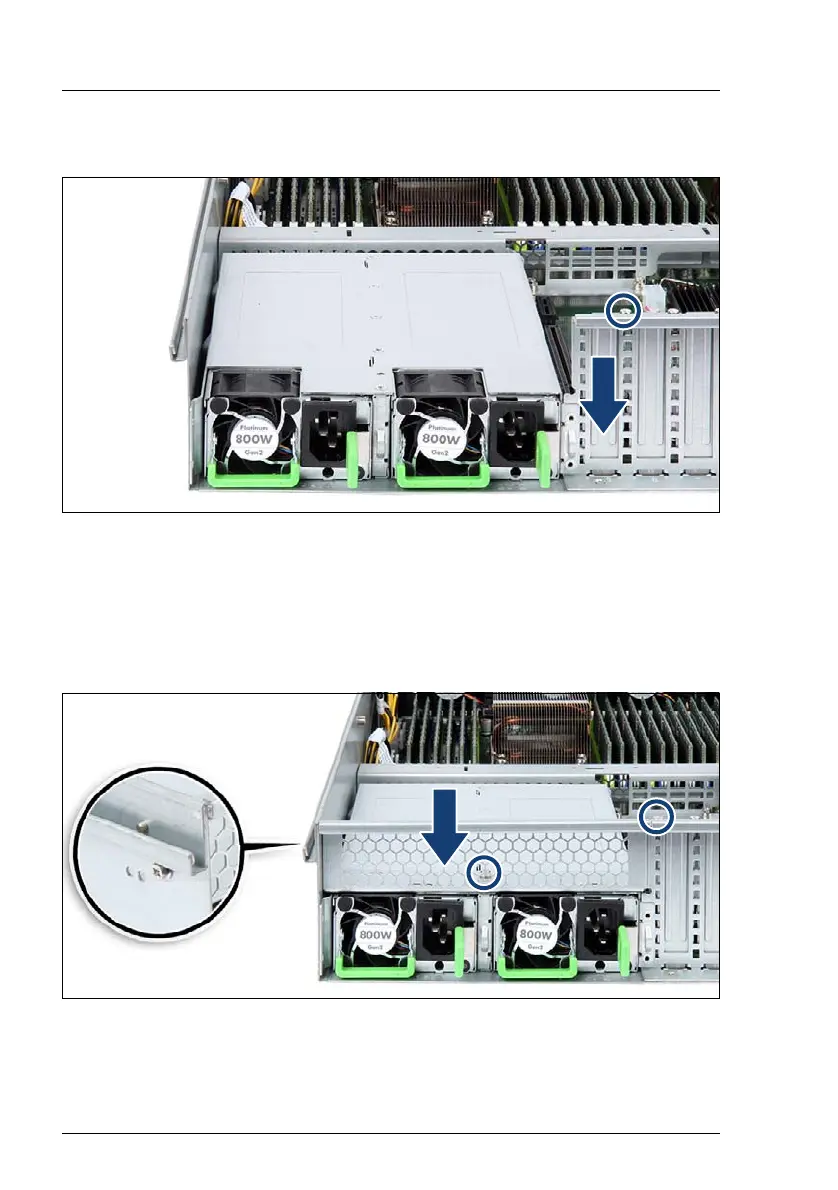

Figure 174: Installing the slot cover
Ê Insert the slot cover.
Ê Fasten the slot cover with the screw.
8.5.4.5 Installing the rear air grid riser module 2
Figure 175: Installing the rear air grid
Ê Insert the rear air grid.
Ê Fasten the rear air grid with three screws (see circles and closeup).
