RX2540 M2 Upgrade and Maintenance Manual 189
Hard disk drives (HDD) and solid state drives (SSD)
7.4.1.2 HDD mounting order for 16x 2.5-inch HDD/SSD configuration

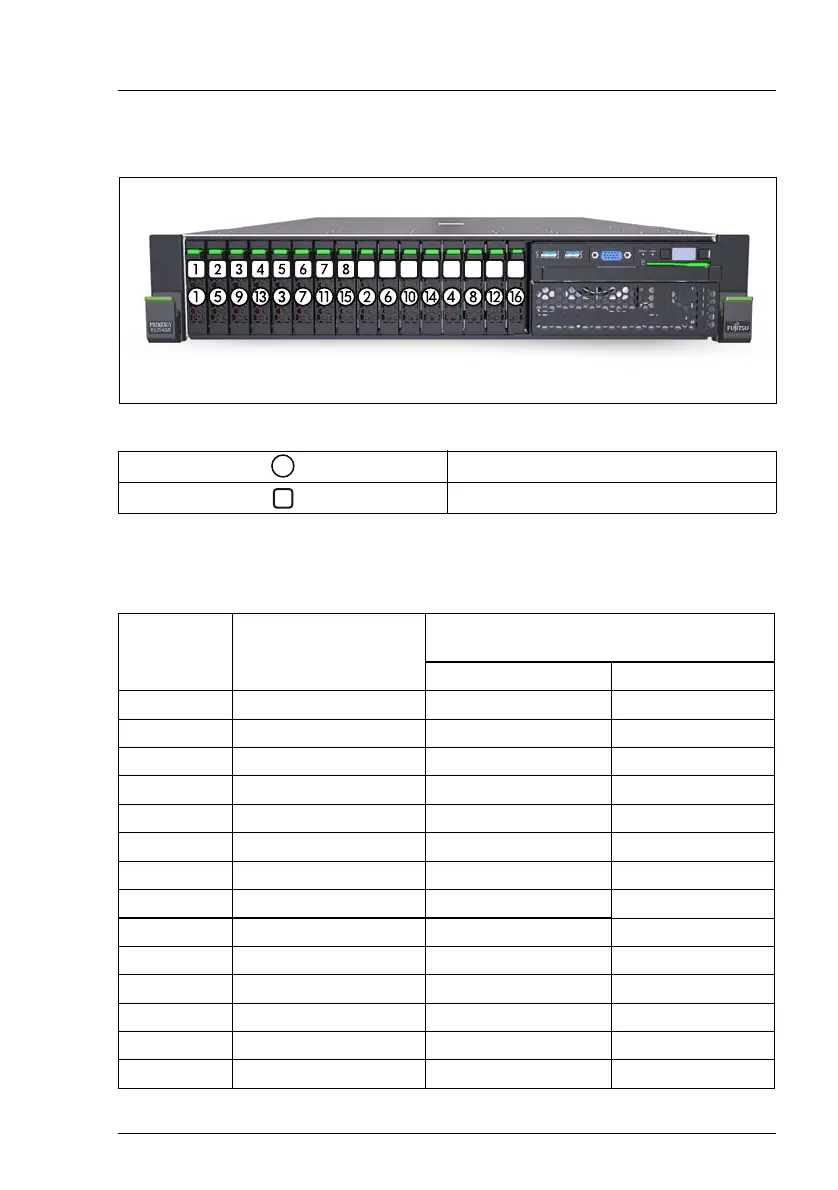

Figure 90: 16x 2.5-inch HDD/SSD mounting order
I The HDD/SSD numbering as listed in the ServerView RAID Manager
differs from the HDD mounting order:
Mounting order
Position
Position Logical drive number
ServerView RAID Manager display name
(Enclosure number: Port number)
one SAS controller two SAS controllers
[1] 0 Vendor Product (0) Vendor Product (0:0)
[2] 1 Vendor Product (1) Vendor Product (0:1)
[3] 2 Vendor Product (2) Vendor Product (0:2)
[4] 3 Vendor Product (3) Vendor Product (0:3)
[5] 4 Vendor Product (4) Vendor Product (0:4)
[6] 5 Vendor Product (5) Vendor Product (0:5)
[7] 6 Vendor Product (6) Vendor Product (0:6)
[8] 7 Vendor Product (7) Vendor Product (0:7)
[9] 8 Vendor Product (8) Vendor Product (1:0)
[10] 9 Vendor Product (9) Vendor Product (1:1)
[11] 10 Vendor Product (10) Vendor Product (1:2)
[12] 11 Vendor Product (11) Vendor Product (1:3)
[13] 12 Vendor Product (12) Vendor Product (1:4)
[14] 13 Vendor Product (13) Vendor Product (1:5)
