Fujitsu PRIMERGY RX2540 M2

RX2540 M2 Upgrade and Maintenance Manual 205
Hard disk drives (HDD) and solid state drives (SSD)
7.5.1.5 Connecting cables to backplane 1
Configuration without SAS expander board

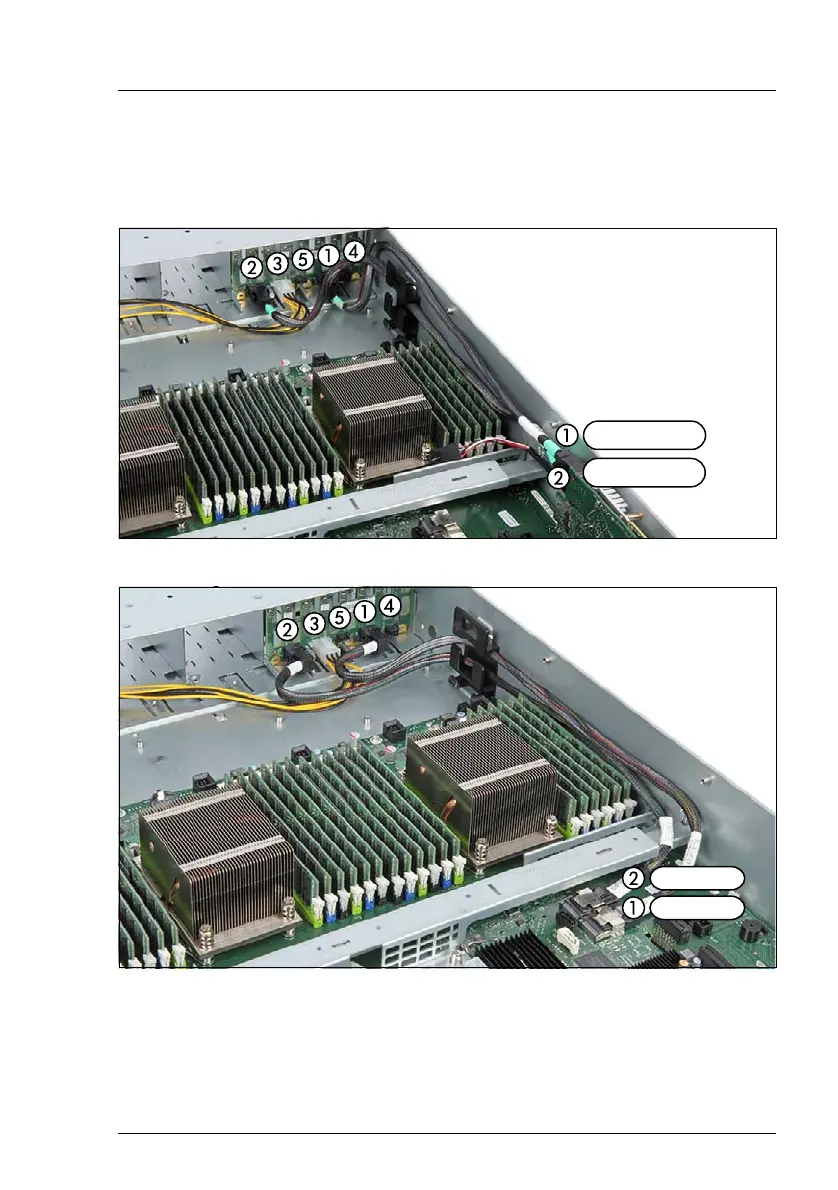

Figure 105: Connecting cables with SAS controller
Figure 106: Connecting cables with onboard controller
Ê Connect the two SAS cables to the backplane:
– (1) from SAS controller connector MLC1 or from system board connector
SATA 1-4
SAS MCL 1
SAS MCL 2
SATA 7-10
SATA 1-4
