270 Upgrade and Maintenance Manual RX2540 M2
Expansion cards and backup units
8.5.2.2 Removing a PCIe expansion card from a riser module

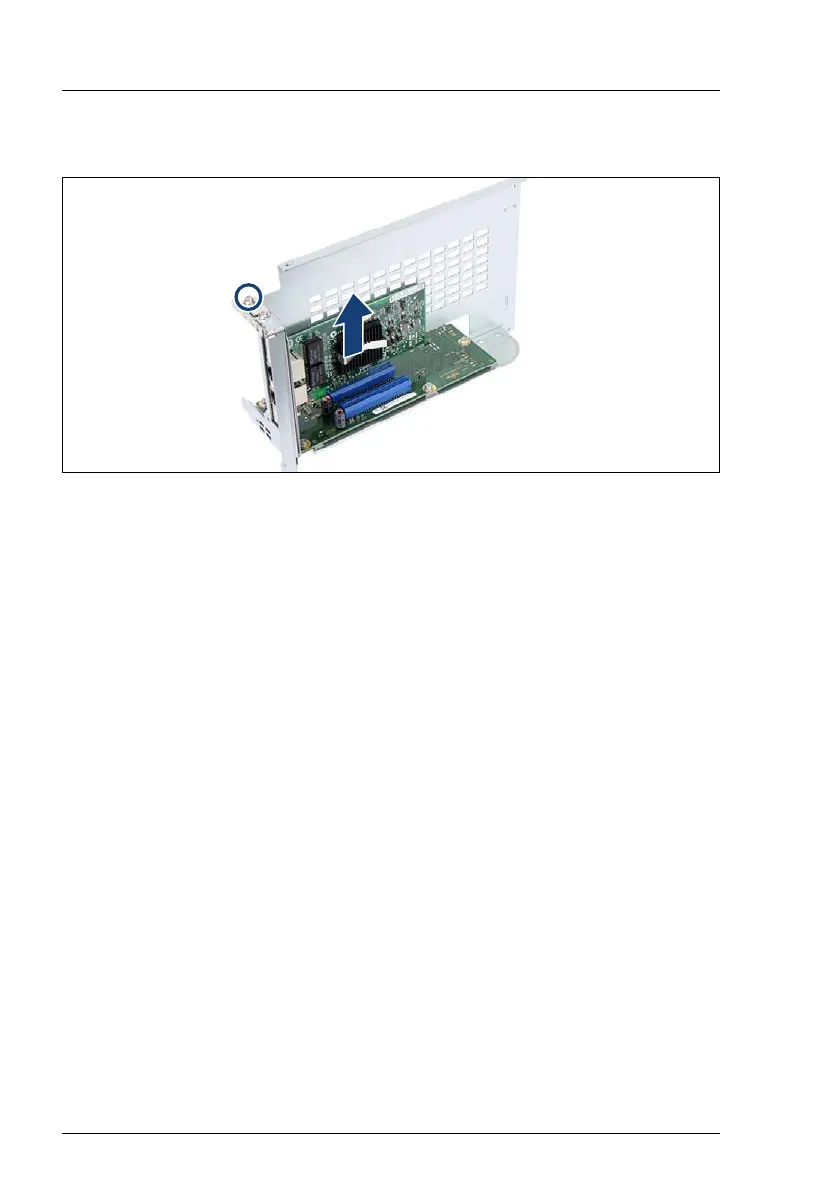

Figure 169: Example: Removing an expansion card from a riser module
Ê Remove the screw (see circle).
Ê Carefully remove the expansion card from its slot.
8.5.2.3 Installing the slot cover riser module 1
Ê Insert the slot cover.
Ê Fasten the slot cover with the screw.
8.5.2.4 Concluding steps
Ê Install the riser module 1 as described in section "Installing the riser module
1 (HL)" on page 85
Ê "Reassembling" on page 73
Ê "Connecting the power cord" on page 79
Ê "Switching on the server" on page 82
Ê "Resuming BitLocker functionality" on page 120
