RX2540 M2 Upgrade and Maintenance Manual 301
Expansion cards and backup units
8.6.3.8 Removing the slot cover riser module 2
Ê Remove the slot cover as described in section "Removing the slot cover riser
module 2" on page 273.
8.6.3.9 Installing the riser module 2 (FL)
Ê Install the riser module 2 as described in section "Installing the riser module
2 (FL)" on page 92

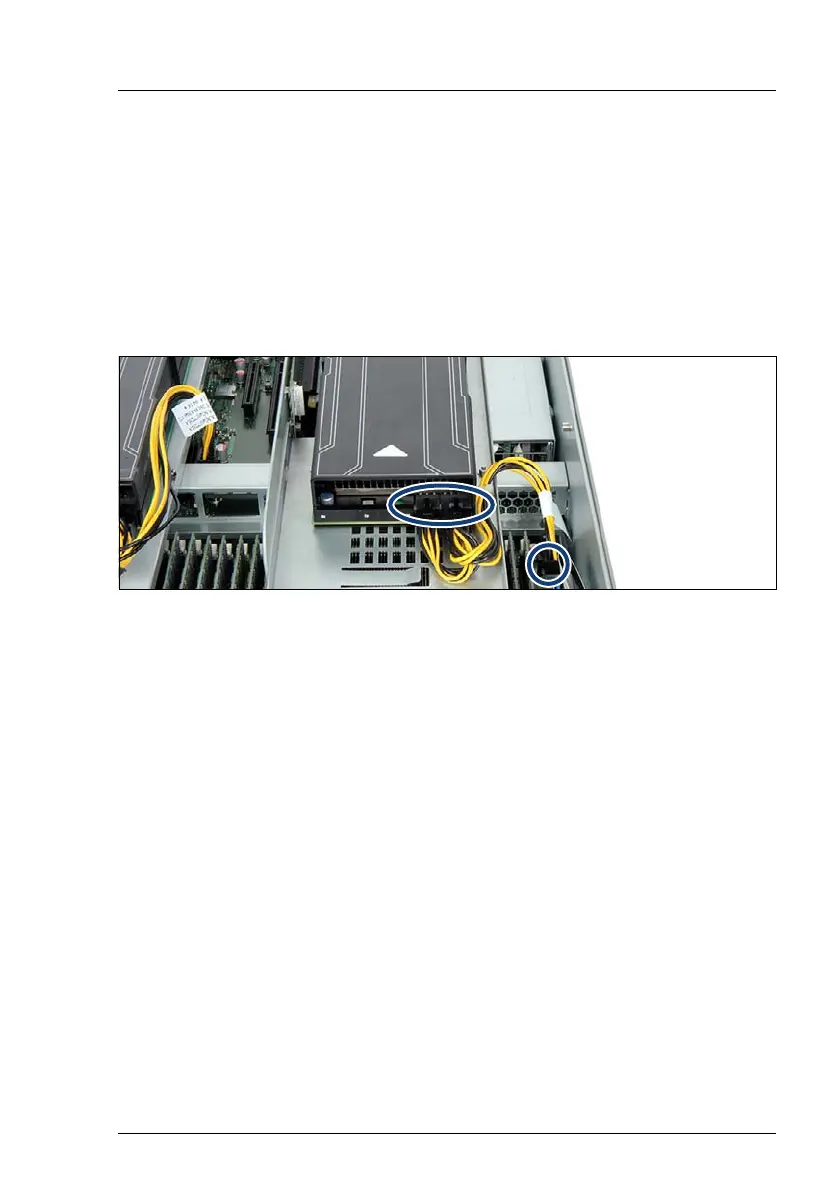

Figure 196: Connecting the power cable
Ê Connect the power cable to both connectors on the GPGPU card and the
connector PWR 12V 3 on the system board as shown.
