RX2540 M2 Upgrade and Maintenance Manual 483
Front panel and external front connectors
Ê Remove the cable from the desired item.
Ê If applicable, remove the cable tie.
13.5.1.4 Installing the front panel module

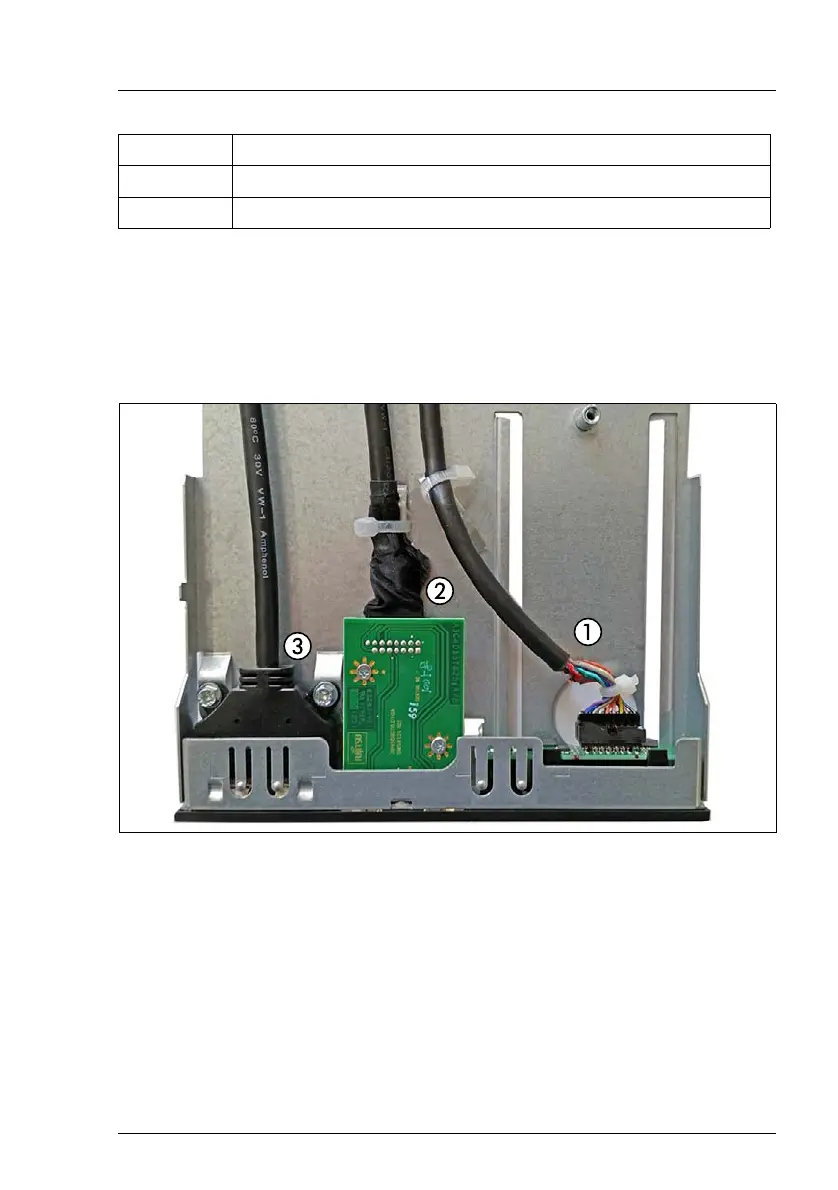

Figure 360: Installing the front panel module
Ê If applicable, connect the front panel cable (1).
Ê If applicable, connect the front VGA cable (2).
Ê If applicable, connect the front USB3.0 cable (3).
Ê If applicable, fasten the front panel cable with two cable ties and VGA cable
one cable tie.
1 Front panel module
2 Front VGA
3 Front USB3.0
