RX2540 M2 Upgrade and Maintenance Manual 537

System board and components

14.5.1.2 Installing the SATA DOM

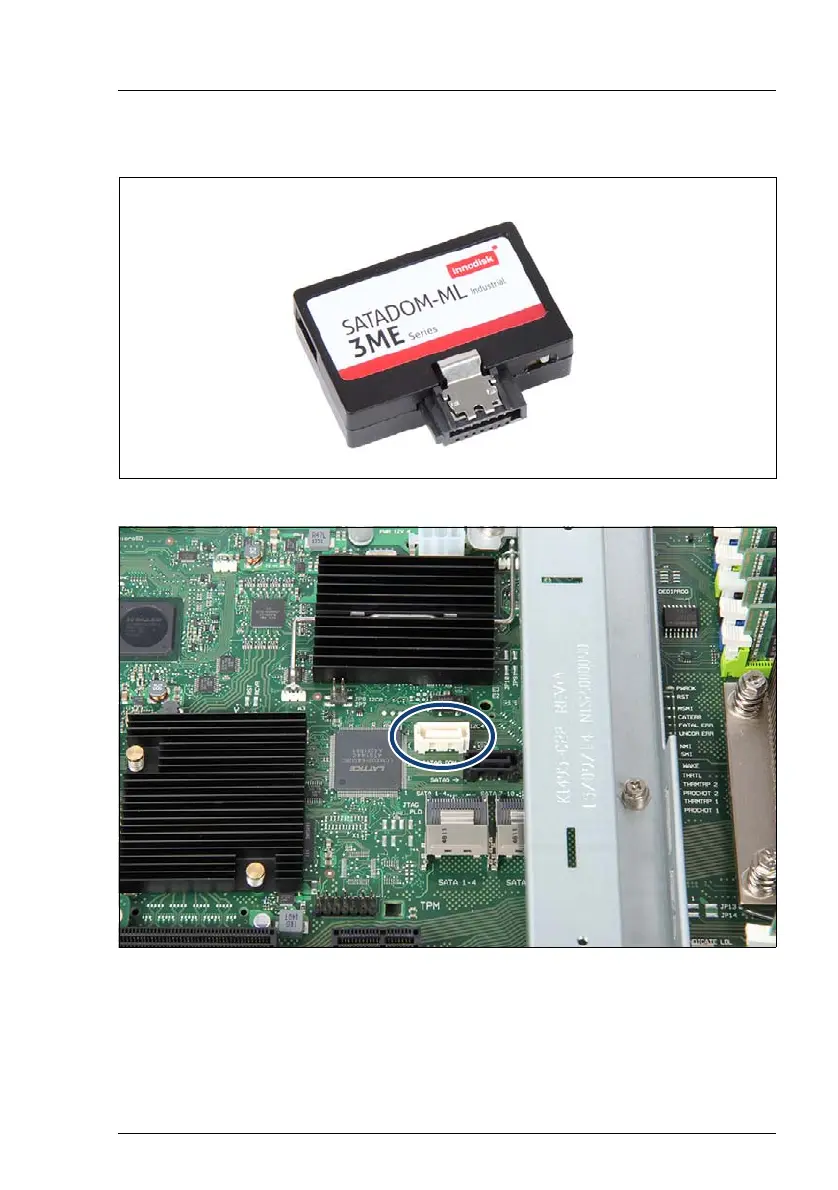

Figure 405: SATA DOM

Figure 406: Connector SATA6 DOM
