178 Upgrade and Maintenance Manual RX2540 M2
Hard disk drives (HDD) and solid state drives (SSD)
7.3.3.5 Installing the SAS expander board

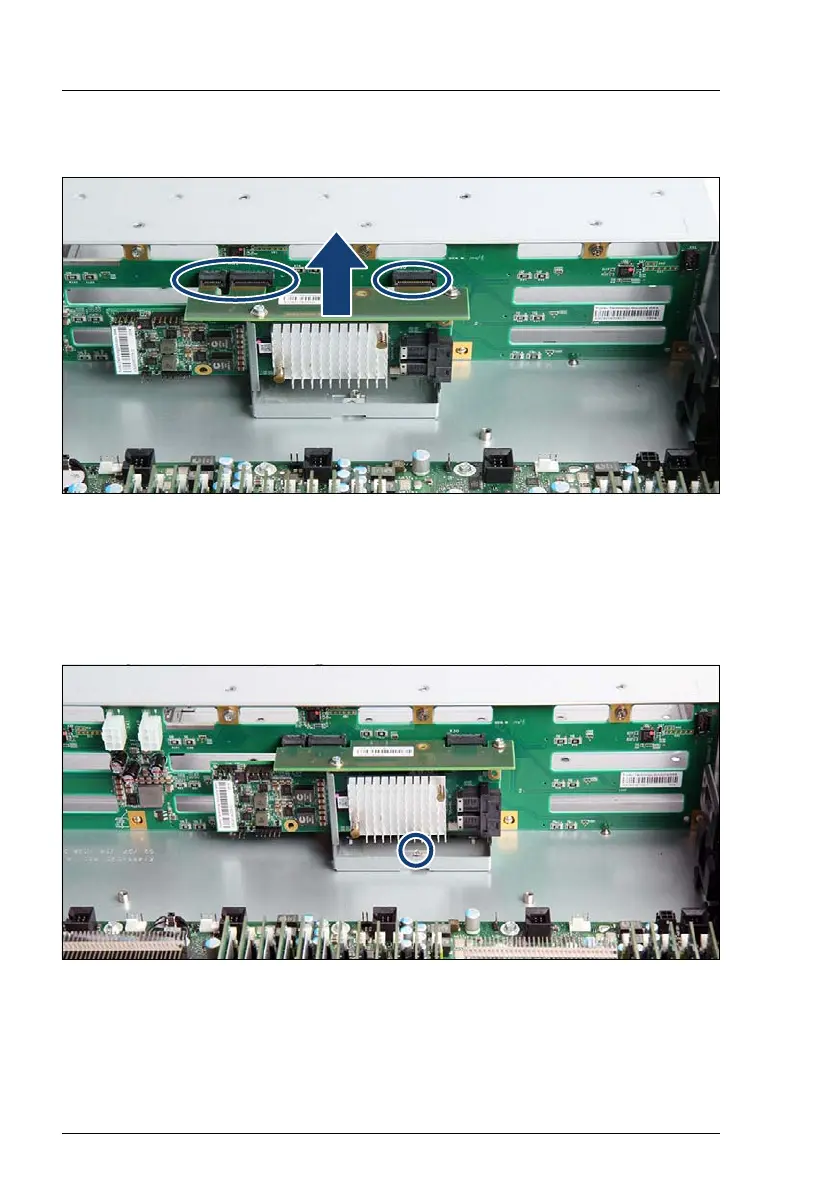

Figure 77: Installing the assembled SAS expander holder (A)
Ê Insert the connector card into the three connectors of the HDD backplane
(see circles).
I Lift up the SAS expander holder and take care of the stand-off in the
chassis.
Figure 78: Installing the SAS expander holder (B)
Ê Fasten the SAS expander holder with one screw (see circle).
