208 Upgrade and Maintenance Manual RX2540 M2
Hard disk drives (HDD) and solid state drives (SSD)
7.5.2.2 Disconnecting cables from the backplane
Ê Disconnect all cables from the backplane as described in section
"Disconnecting cables from backplane" on page 202.
7.5.2.3 Removing the backplane
Ê Remove the backplane as described in section "Removing the backplane"
on page 203.
7.5.2.4 Installing the backplane
Ê Install the backplane as described in section "Installing the backplane" on
page 204.
7.5.2.5 Connecting cables to backplane 2/3
Configuration without SAS expander board

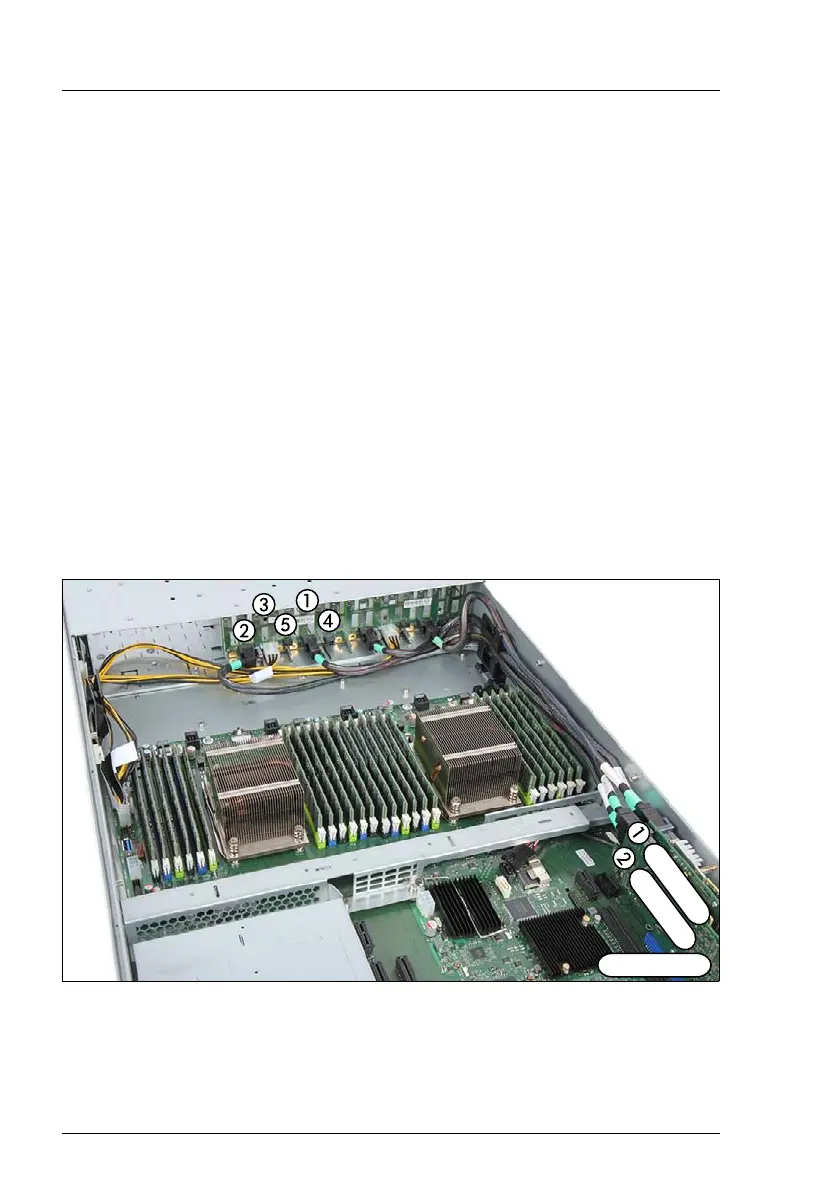

Figure 108: Connecting cables with SAS controller 2
Ê Connect the two SAS cables to the backplane 2:
– (1) from SAS controller 2 connector MLC1
SAS MLC2
SAS MLC1
Controller 2
