RX2540 M2 Upgrade and Maintenance Manual 209
Hard disk drives (HDD) and solid state drives (SSD)
– (2) from SAS controller 2 connector MLC2
Ê Connect power cables to the backplane:
– Power cable (3)
– If applicable ODD power cable (4)
– If applicable OOB cable (5)
Ê Route the cables as shown.
Configuration with SAS expander board

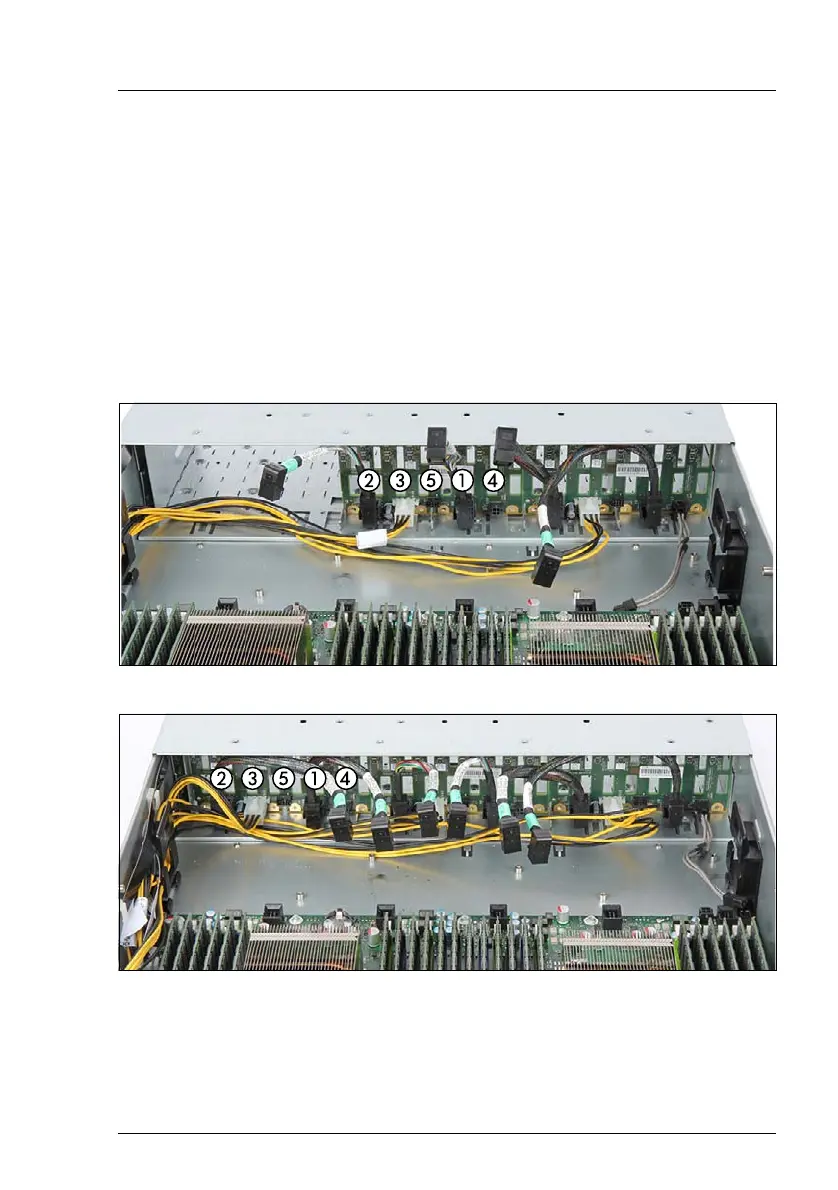

Figure 109: Connecting cables to backplane 2
Figure 110: Connecting cables to backplane 3
Ê If applicable, connect the two SAS cables to the backplane 2, see figure 109
on page 209:
– Cable T26139-Y4040-V30 to backplane connector X10, X9 (1, 2)
