Fujitsu PRIMERGY RX2540 M2

RX2540 M2 Upgrade and Maintenance Manual 399
System fan
11.3.3 Installing the fan box

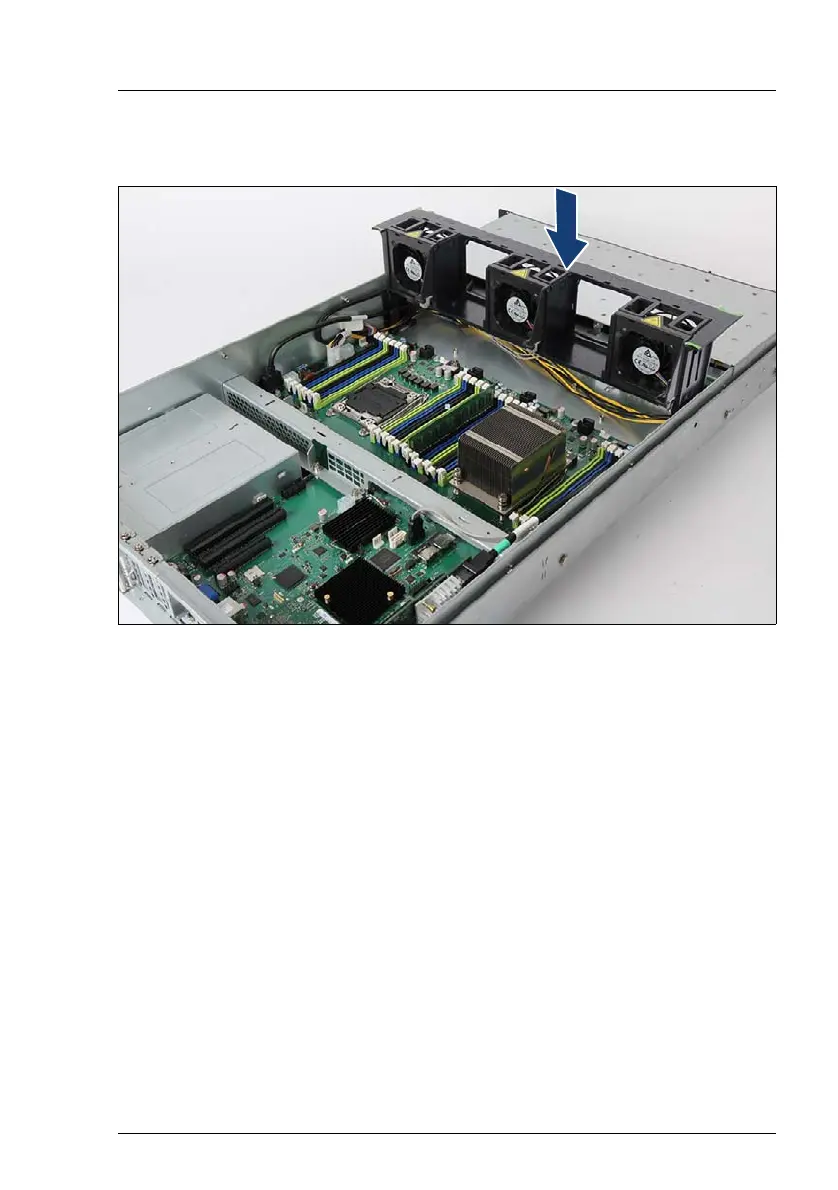

Figure 280: Installing the fan box (A)
Ê Take the fan box by the green touch points and insert the fan box.
Ensure that the fan box properly snaps in place.
V CAUTION!
Do not pitch the power and OOB cables!
