RX2540 M2 Upgrade and Maintenance Manual 233
Hard disk drives (HDD) and solid state drives (SSD)
7.6.2.4 Installing the rear backplane
Ê Install the rear backplane as described in section "Installing the rear
backplane" on page 226.
7.6.2.5 Connecting cables to the rear backplane
Ê "Connecting cables to the rear backplane" on page 227.
I For a complete cabling overview, please refer to section "Configuration
4x 2.5-inch SAS HDD/SSD rear" on page 571 or "Configuration 4x 2.5-
inch PCIe SSD rear" on page 571.
Connecting cables from 4x 2.5-inch SAS HDD/SSD backplane rear to the
SAS controller

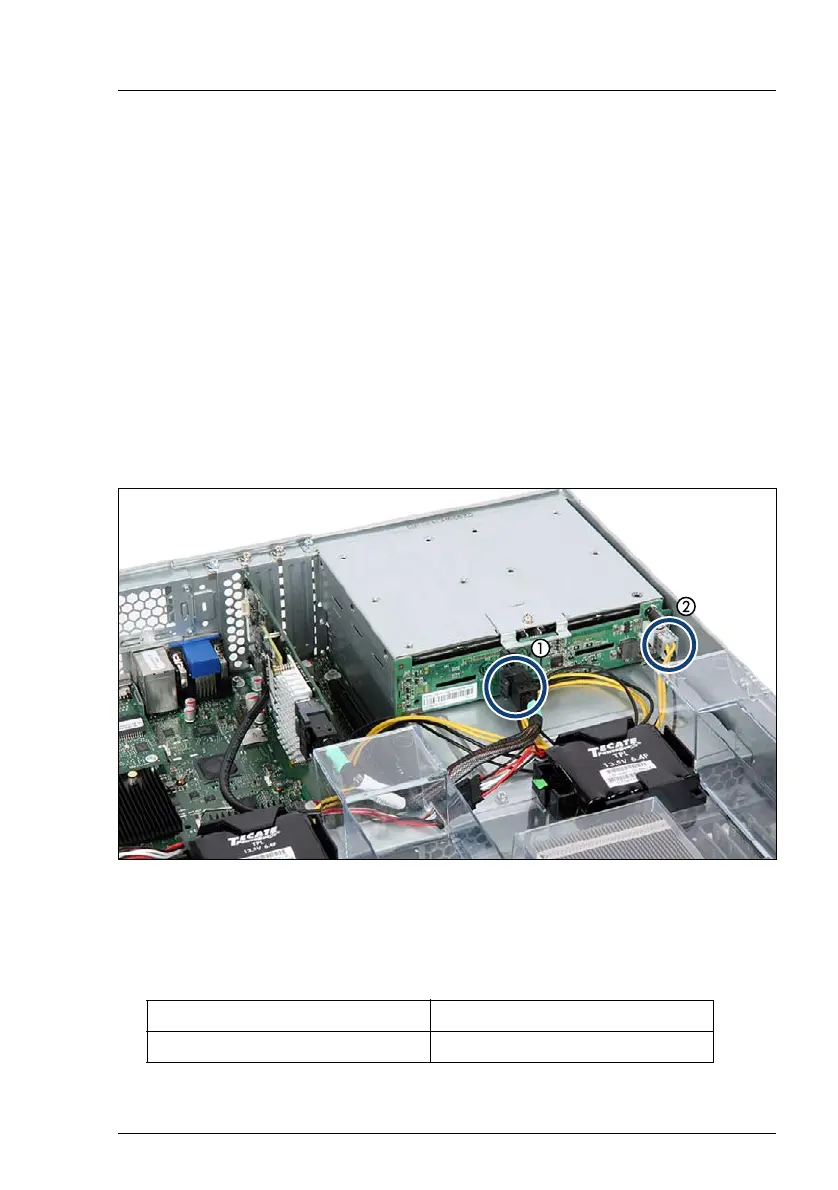

Figure 135: Connecting cables to SAS controller
Ê Connect the power cable from backplane connector X10 (2) to system board
connector PWR 12V 4.
Ê Connect the SAS cable to the backplane:
Connector on SAS controller Connector on backplane
MLC1 X5
