System board and components
Ê Save your changes and exit the BIOS.
Ê "Locating the defective server" on page 61
Ê "Shutting down the server" on page 65
Ê "Disconnecting the power cord" on page 66
Ê "Getting access to the component" on page 68
Ê "Removing the fan box" on page 397
14.4.2.2 Removing the TPM
Ê "Removing the defective system board" on page 549.
Ê Lay the system board on a soft, antistatic surface with its component side
facing down.

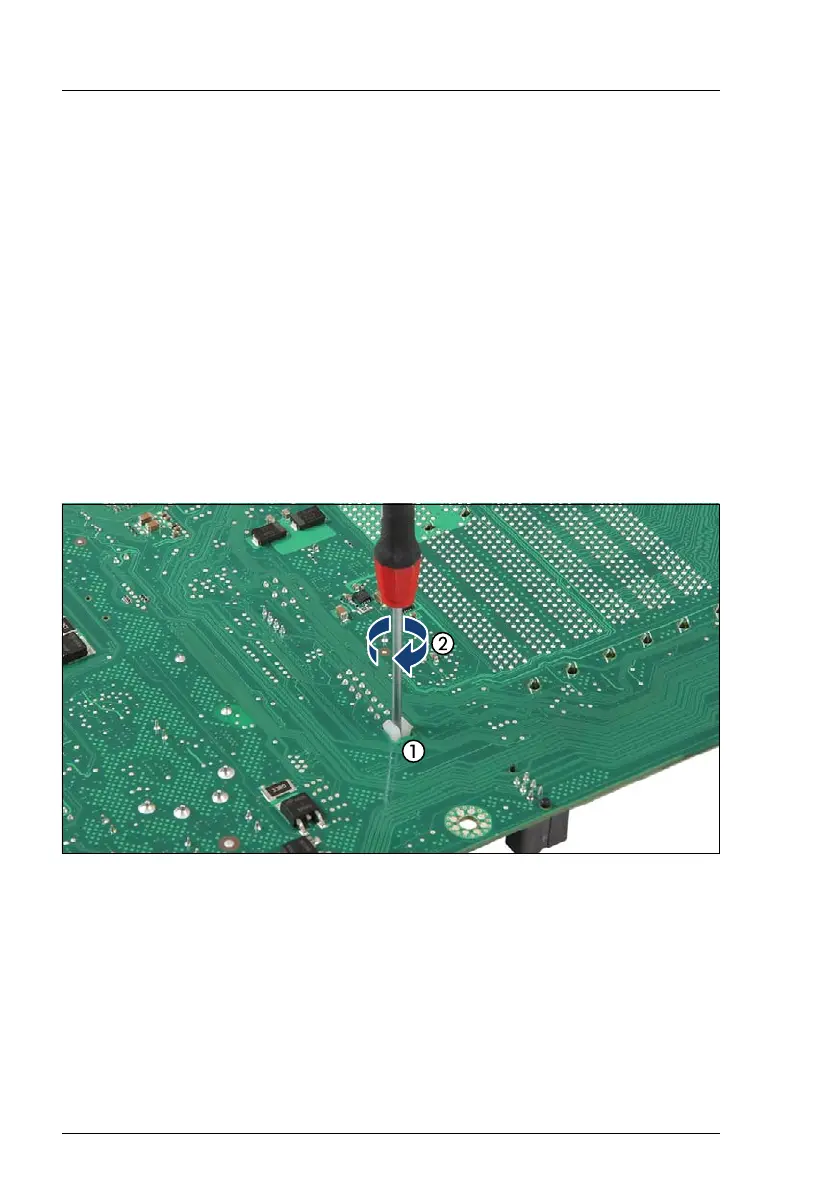

Figure 402: Removing the TPM screw
Ê Locate the slotted lower end of the TPM screw (1).
Ê Carefully loosen the TPM screw using a thin slotted screw driver (e.g.
watchmaker's screw driver) or the dedicated TPM screw driver (Japanese
market) (2).
V CAUTION!
Ensure to turn the screw clockwise in order to remove it!
