RX2540 M2 Upgrade and Maintenance Manual 267
Expansion cards and backup units
8.5.1.4 Removing the slot cover riser module 1

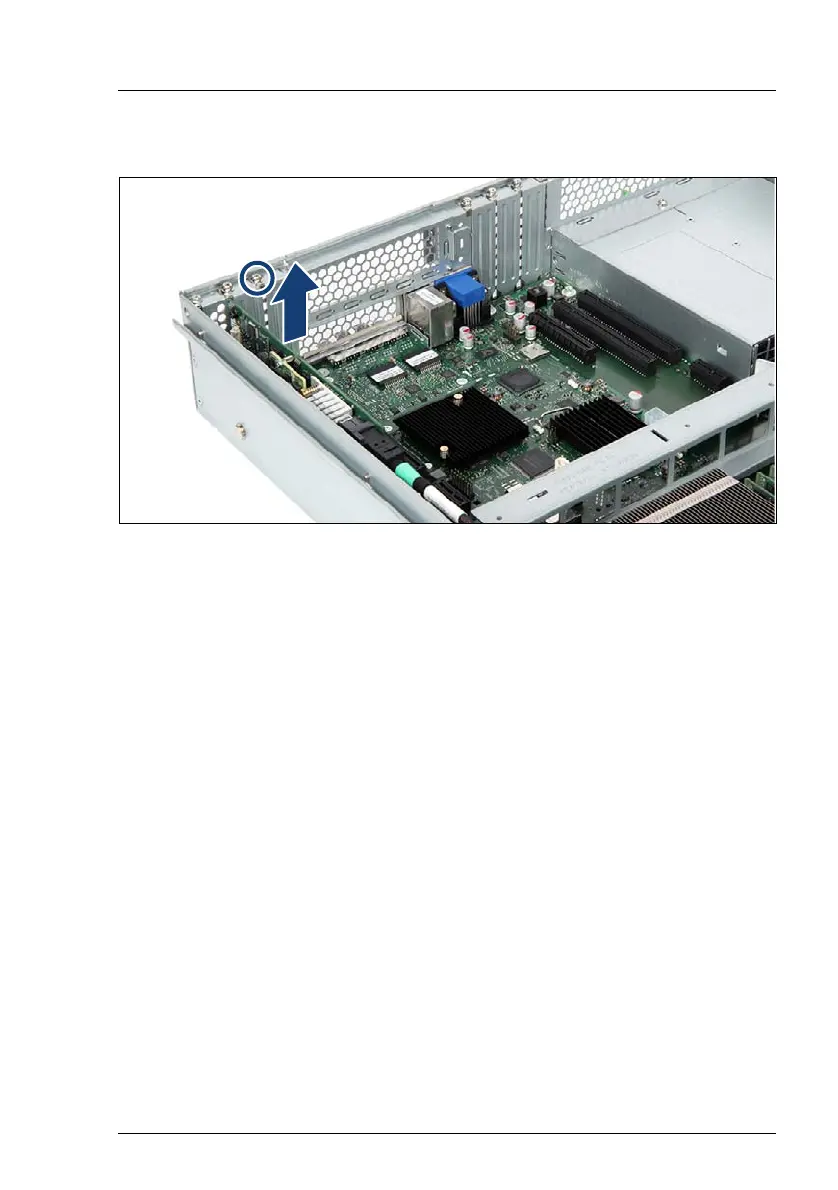

Figure 167: Removing the slot cover
Ê Remove the screw (see circle).
Ê Remove the slot cover.
V CAUTION!
Keep the slot cover for future use.
Always replace slot covers into unused PCI slot openings to comply
with applicable EMC regulations and satisfy cooling requirements.
