306 Upgrade and Maintenance Manual RX2540 M2
Expansion cards and backup units

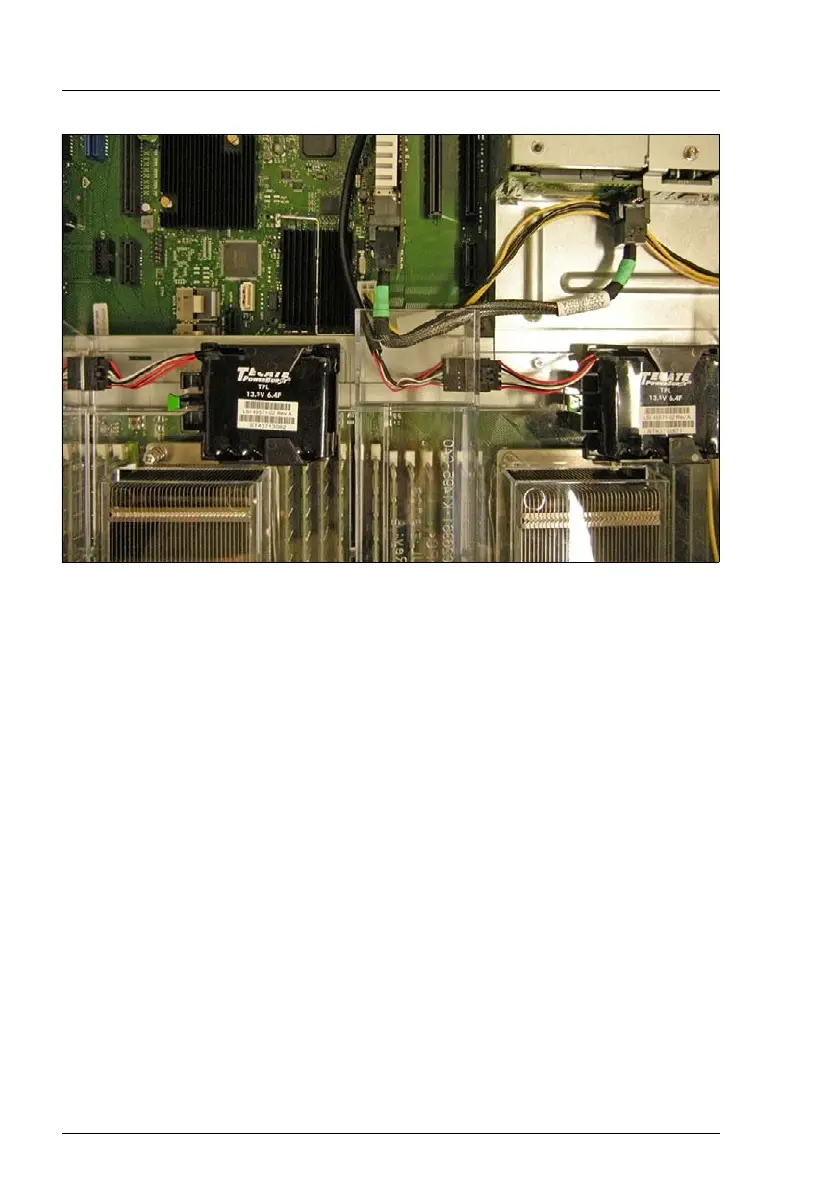

Figure 204: Routing of the cables for the FBUs
Ê In case of installed FBUs, route the cables as shown.
8.6.3.12 Concluding steps
Ê "Reassembling" on page 73
Ê "Connecting the power cord" on page 79
Ê "Switching on the server" on page 82
Ê If applicable, "Updating RAID controller firmware" on page 106.
Ê If applicable, "Enabling Option ROM scan" on page 107.
Ê "Enabling SVOM boot watchdog functionality" on page 114
Ê "Resuming BitLocker functionality" on page 120
