Processor (CPU)
10.2.2.2 Installing the new CPU

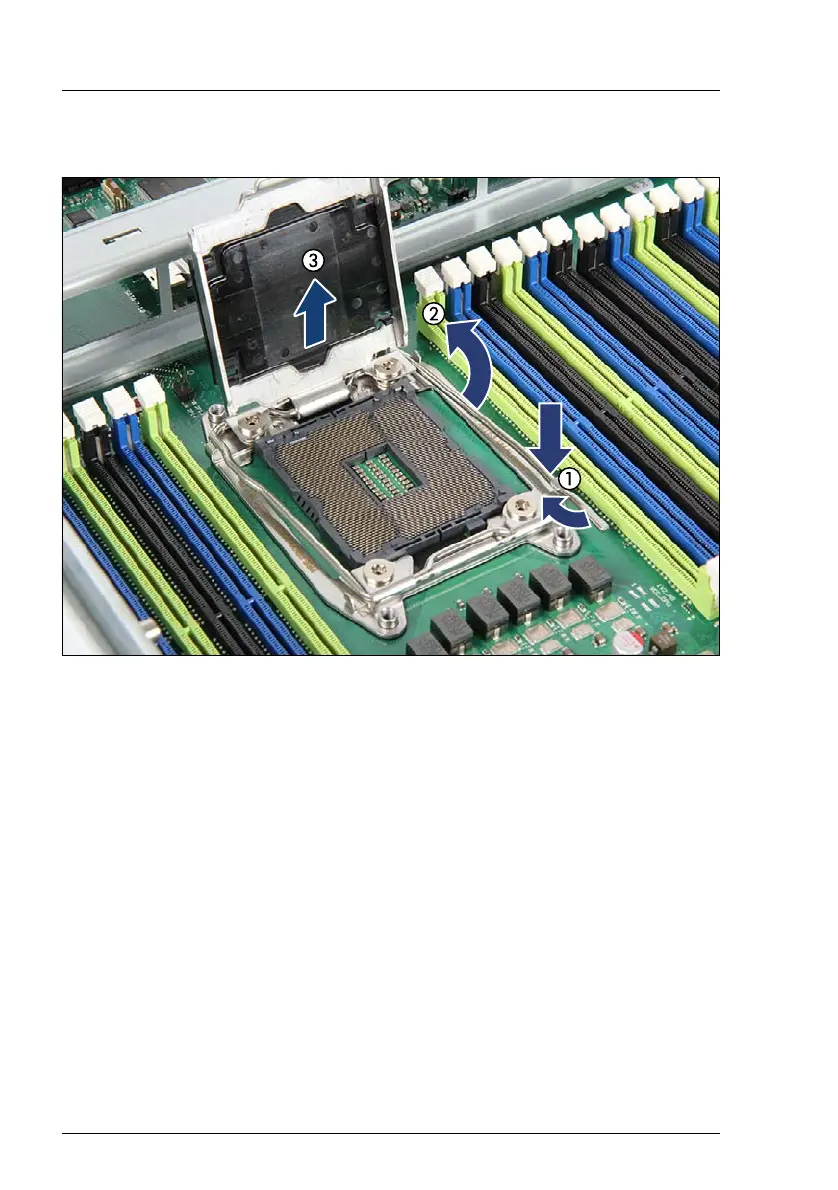

Figure 254: Opening the load plate (C)
Ê Unlatch the socket release lever 1 by pushing it down an inward (1).
Ê Fold back the socket release lever 1 (2).
Ê Remove the socket cover and save it for future use (3).
V CAUTION!
Always replace the socket cover if you remove the CPU from the
socket!
