204 Upgrade and Maintenance Manual RX2540 M2
Hard disk drives (HDD) and solid state drives (SSD)
7.5.1.4 Installing the backplane

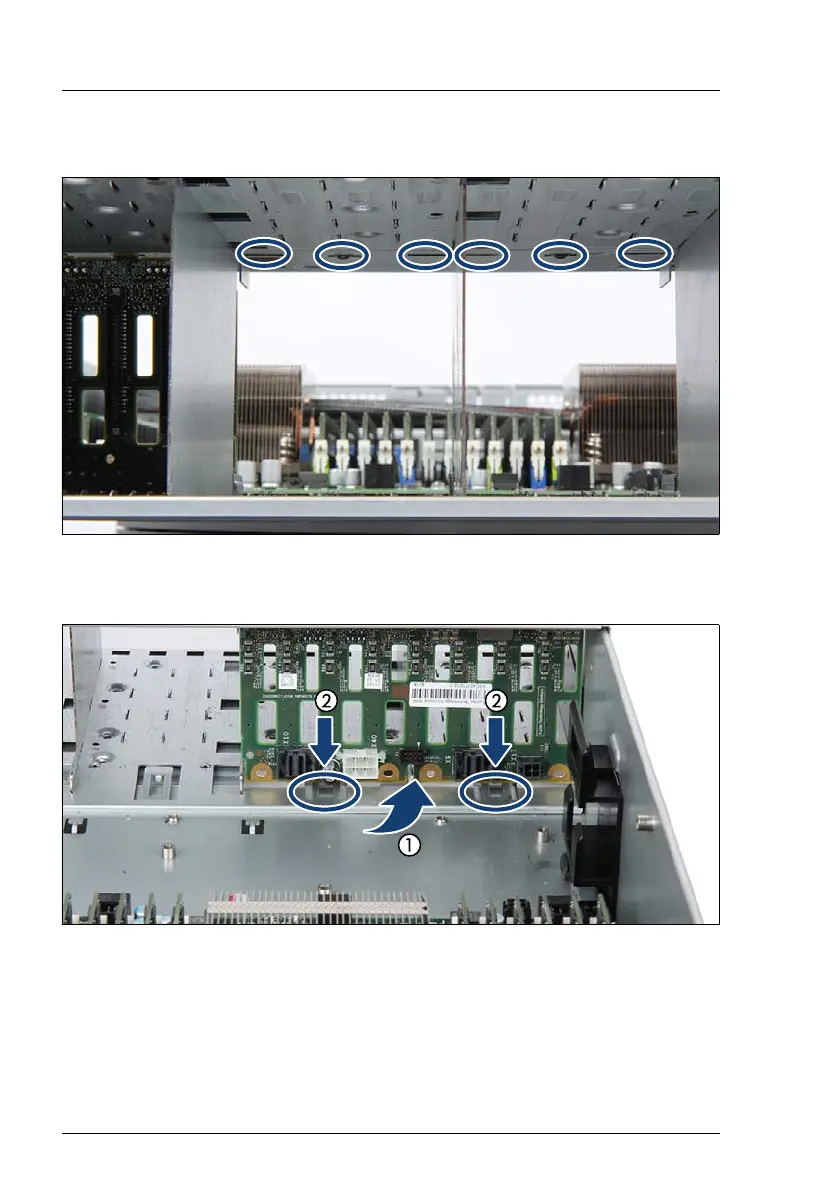

Figure 103: Recesses at the top for the 2.5-inch SAS HDD/SSD backplane
Ê Regard the six recesses at the top.
Figure 104: Installing the 8x 2.5-inch SAS HDD/SSD backplane
Ê At a slight angle insert the backplane in the six recesses (see figure 103 on
page 204) at the top.
Ê Fold back the backplane on the bottom (1) until it rests in the two hooks (2).
