216 Upgrade and Maintenance Manual RX2540 M2
Hard disk drives (HDD) and solid state drives (SSD)
7.5.4.3 Removing the 4x 2.5-inch PCIe SSD backplane

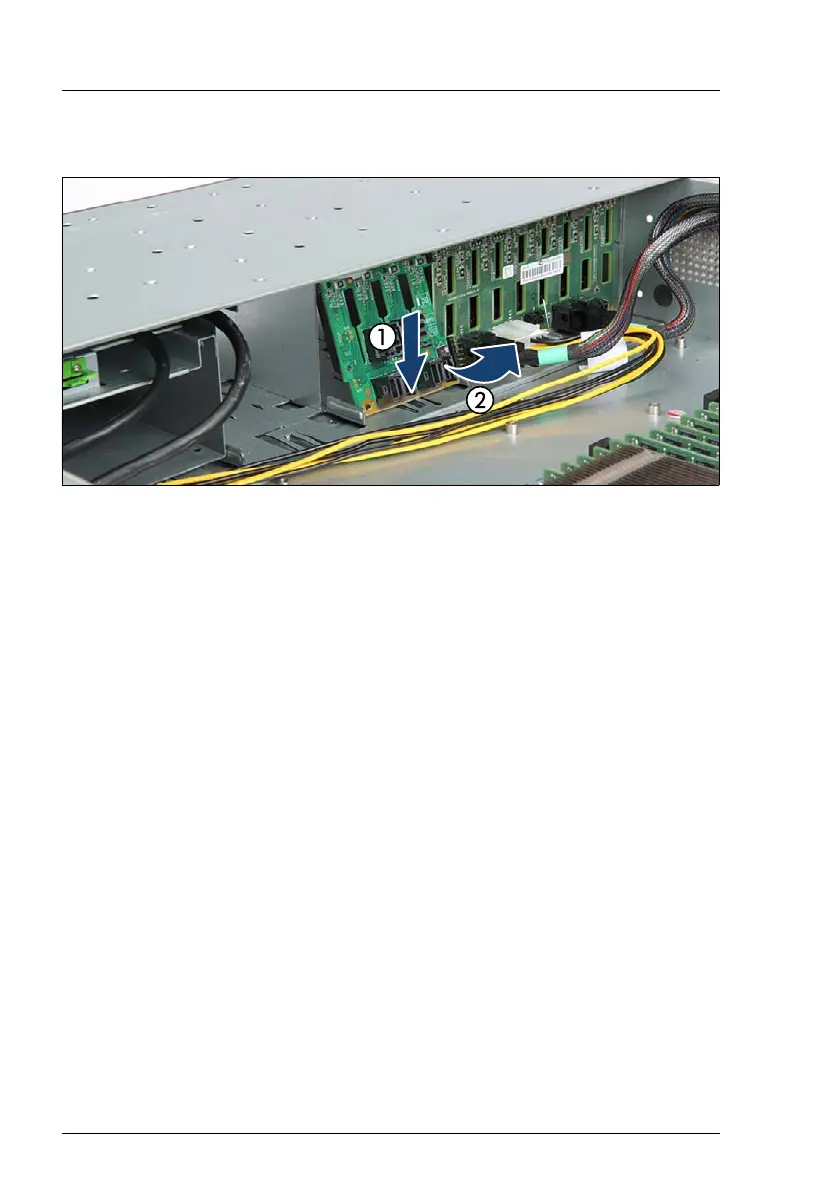

Figure 116: Removing the the PCIe backplane
Ê Press down the locking latch with a screw driver to unlock the PCIe
backplane (1).
Ê Remove the PCIe backplane (2).
Ê Release the PCIe backplane from the three recesses on the top.
7.5.4.4 Installing the PCIe backplane
Ê "Installing the 4x 2.5-inch PCIe SSDbackplane" on page 211
Ê "Connecting cables to PCIe backplane" on page 212
7.5.4.5 Concluding steps
Ê "Installing the fan box" on page 399
Ê "Reassembling" on page 73
Ê "Installing 2.5-inch HDD/SSD modules" on page 193
Ê "Connecting the power cord" on page 79
Ê "Switching on the server" on page 82
Ê "Resuming BitLocker functionality" on page 120
