Front panel and external front connectors
Ê "Removing the fan box" on page 397
13.4.1.2 Removing the front panel module
Ê "Removing the front panel module" on page 455
13.4.1.3 Preparing the front USB3.0 connector

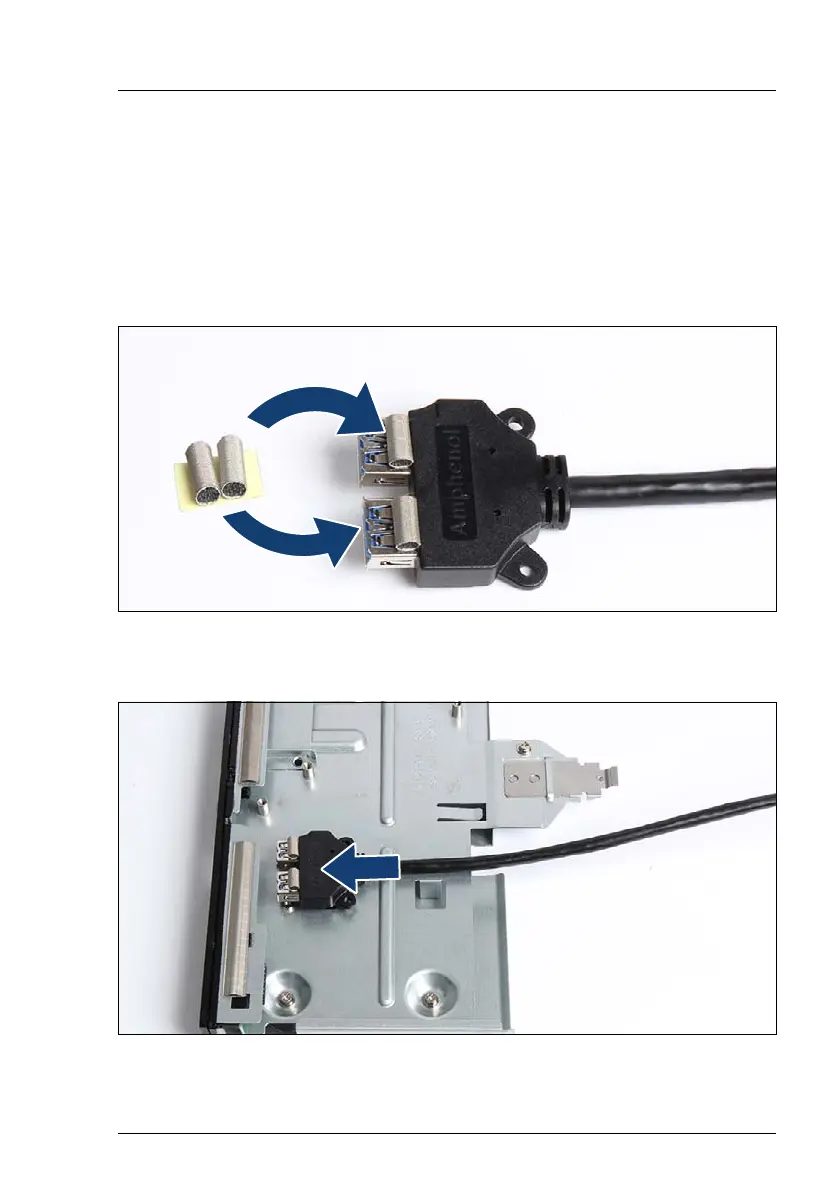

Figure 350: Sticking the gaskets
Ê Stick the self-adhesive gaskets on the front USB3.0 connector.
Figure 351: Inserting the front USB3.0 connector
Ê Push the front USB3.0 connector into the front panel module.
