266 Upgrade and Maintenance Manual RX2540 M2
Expansion cards and backup units
8.5.1.3 Installing a PCIe expansion card in a riser module

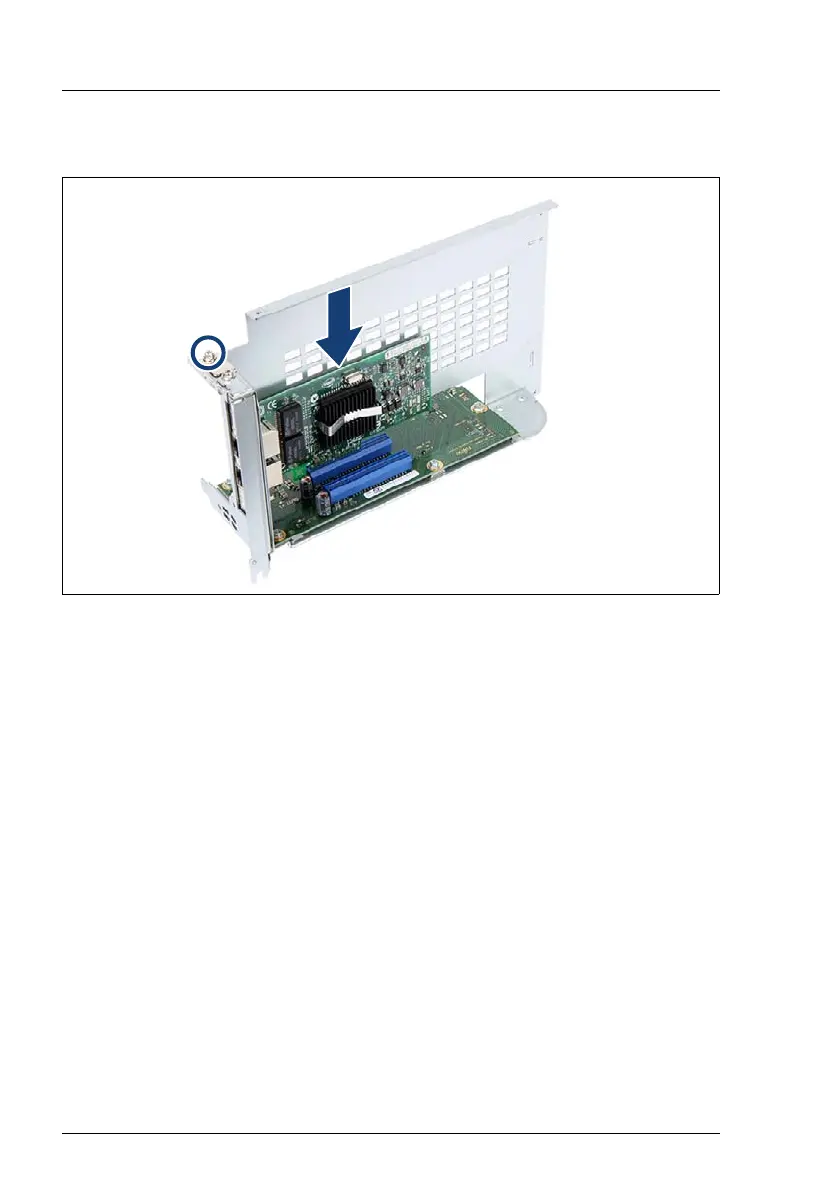

Figure 166: Example: Installing a PCIe expansion card in a riser module
Ê Carefully insert the PCIe expansion card into the desired PCI slot and press
down firmly until it is fully seated in the slot.
Ê Fasten the expansion card with the screw (see circle).
V CAUTION!
Always replace slot covers into unused PCI slot openings to comply with
applicable EMC regulations and satisfy cooling requirements.
