RX2540 M2 Upgrade and Maintenance Manual 179
Hard disk drives (HDD) and solid state drives (SSD)

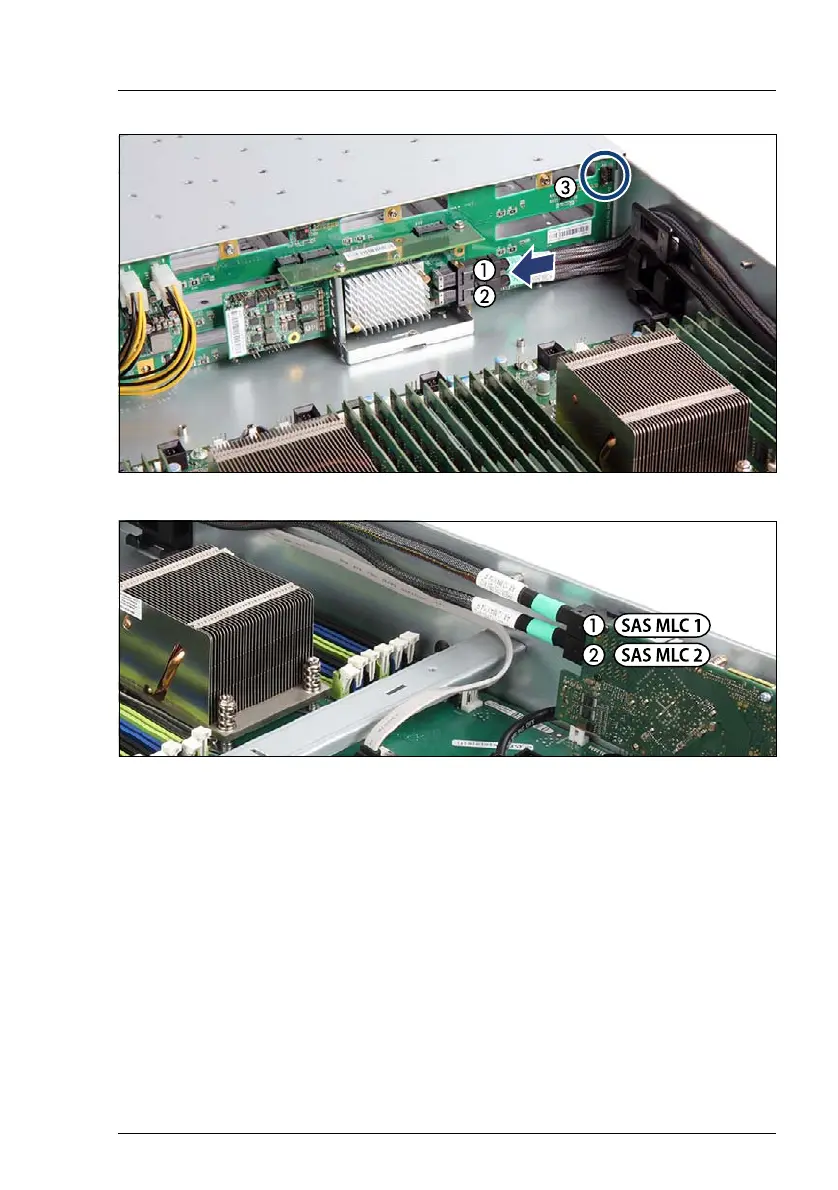

Figure 79: Connecting cables to the expander board and backplane
Figure 80: SAS cables - position on the SAS controller
Ê Connect the two SAS cables to the SAS expander board:
– (1) from SAS controller connector MLC1 to SAS expander board
– (2) from SAS controller connector MLC2 to SAS expander board
Ê (3) If applicable, connect the OOB cable to the backplane.
7.3.3.6 Concluding steps
Ê "Installing the fan box" on page 399
Ê "Reassembling" on page 73
