RX2540 M2 Upgrade and Maintenance Manual 319
Expansion cards and backup units

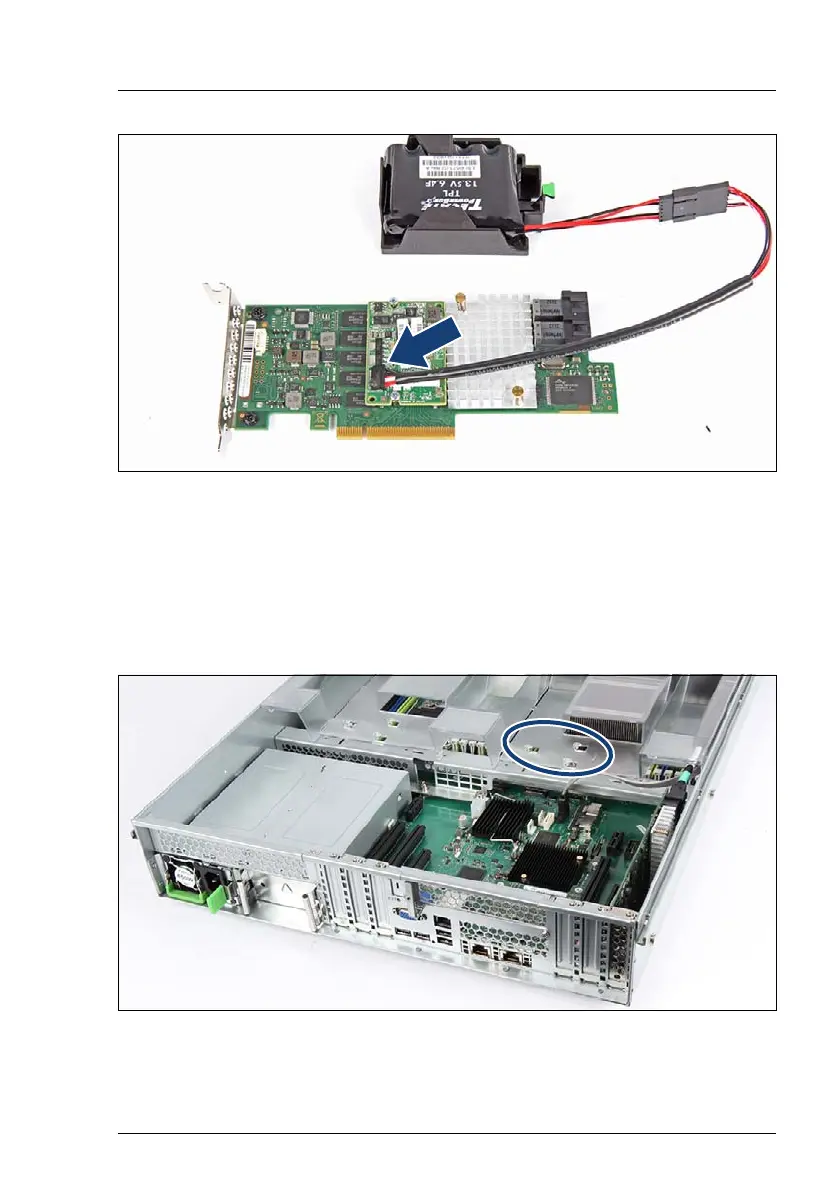

Figure 215: Connecting the FBU adapter cable
Ê Connect the FBU adapter cable to the connector on TFM as shown.
Ê Install the RAID controller see section "Installing expansion cards" on
page 255.
8.7.2.5 Installing the FBU holder onto the air duct
Figure 216: Installing the FBU (A)
I Note the positions of the fixation bolts on the air duct and keyhole slots
on the FBU holder.
