Fujitsu PRIMERGY RX2540 M2

94 Upgrade and Maintenance Manual RX2540 M2
Basic hardware procedures
4.8.2.4 Removing the riser module 2 (FL)

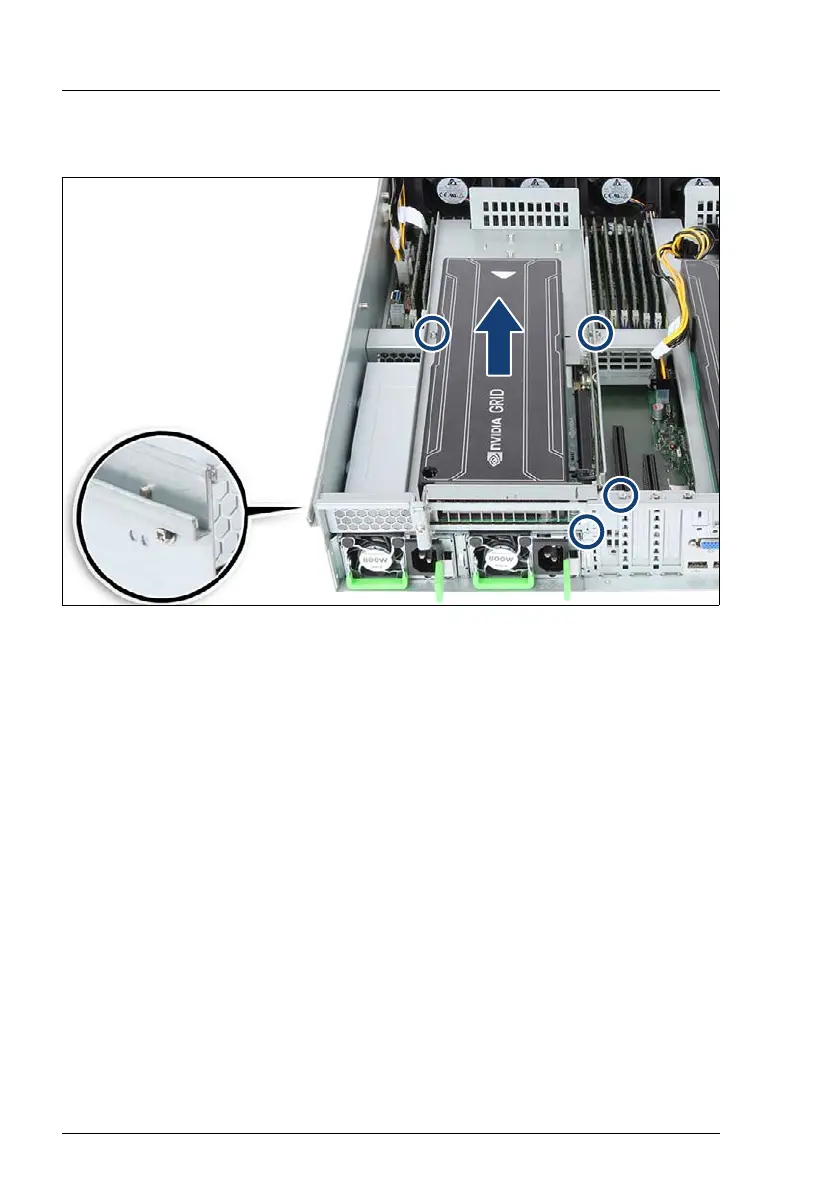

Figure 29: Removing the riser module 2
Ê Remove five screws (see circles and close-up).
Ê Carefully take out the riser module.
