74 Upgrade and Maintenance Manual RX2540 M2
Basic hardware procedures
4.5.1 Installing the air duct

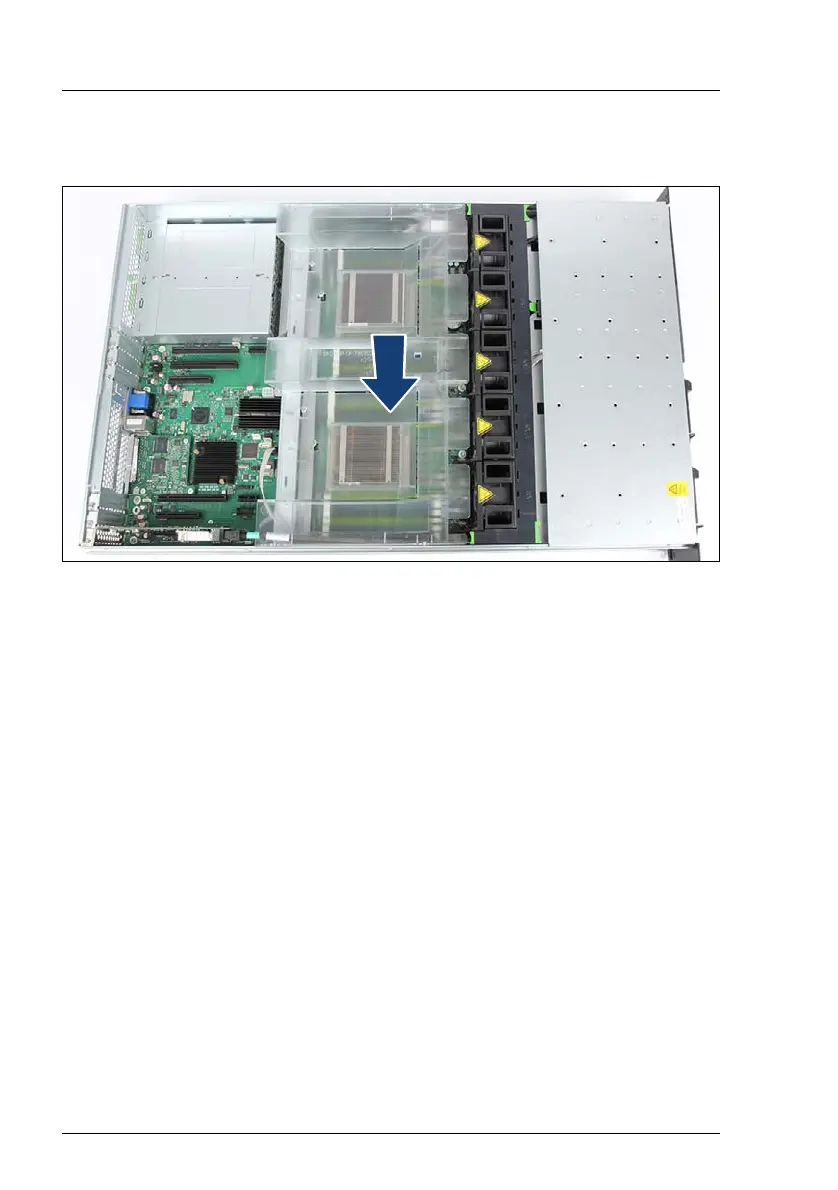

Figure 8: Installing the air duct
Ê Insert the air duct.
I Regard that the air duct engages in the guiding points.
I If there is an FBU installed, follow the procedure that is described in
section "Installing the FBU holder onto the air duct" on page 319.
