RX2540 M2 Upgrade and Maintenance Manual 163
Hard disk drives (HDD) and solid state drives (SSD)
7.3.1.3 Installing the 4x 3.5-inch HDD SAS backplane 1

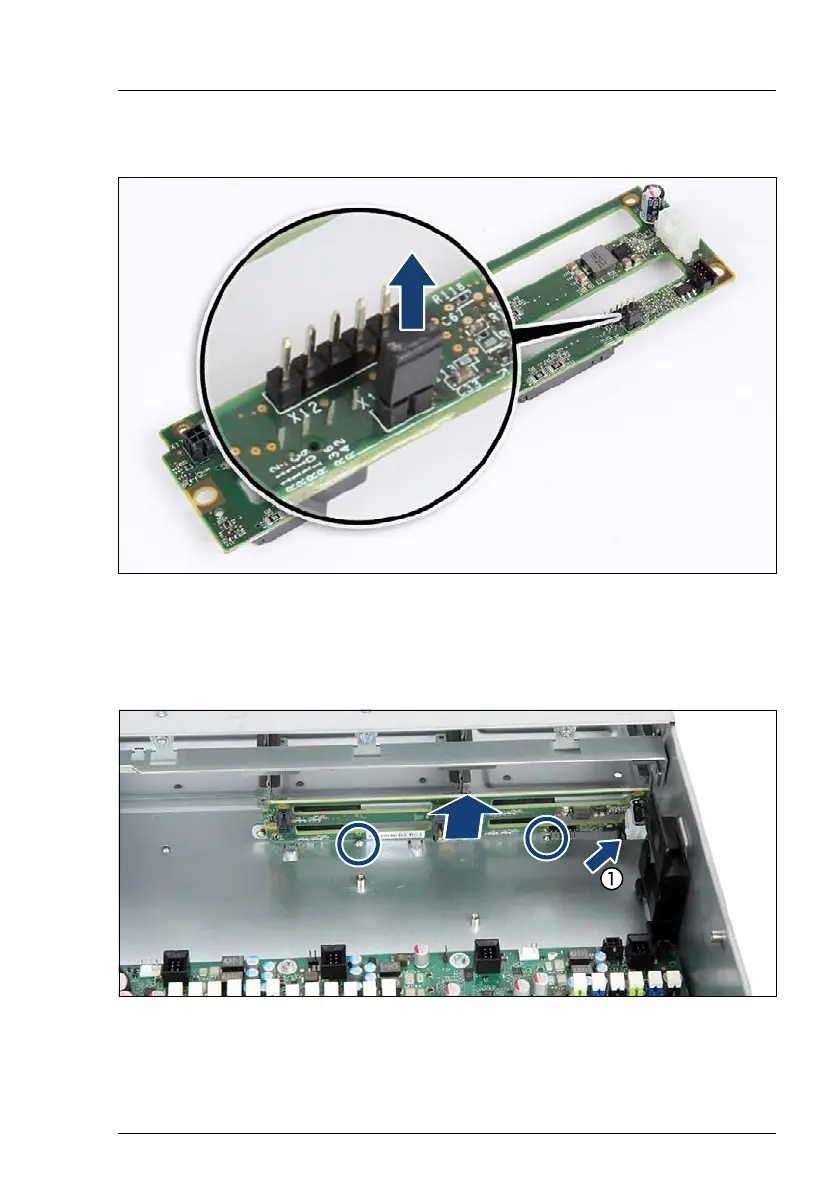

Figure 58: Jumper on a 4x 3.5-inch HDD SAS backplane
I If there is a jumper installed on the 4x 3.5-inch HDD SAS backplane,
remove 2-pins connector X13 (part number of backplane:
A3C40173250).
Figure 59: Installing the 3.5-inch HDD SAS backplane 1
Ê At a slight angle insert the 3.5-inch HDD SAS backplane 1 between the
punching and the centering pin.
