Front panel and external front connectors
13.5.1.5 Installing the front panel cage

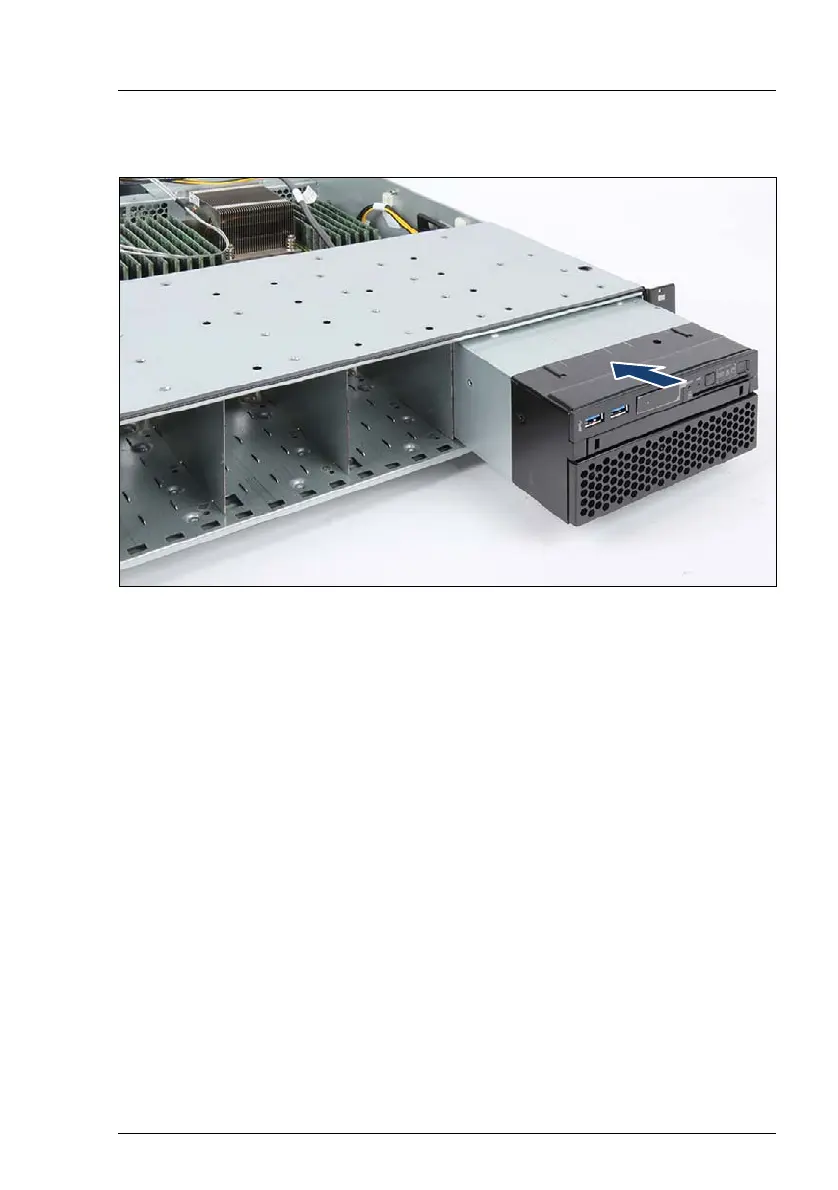

Figure 362: Installing the front panel cage
Ê Route the cables through the opening.
Ê Insert the front panel cage into the chassis (see arrow).
Ê Insert the ID card, see figure 437 on page 578.
