RX2540 M2 Upgrade and Maintenance Manual 181
Hard disk drives (HDD) and solid state drives (SSD)
7.3.4.3 Removing the defective SAS expander board

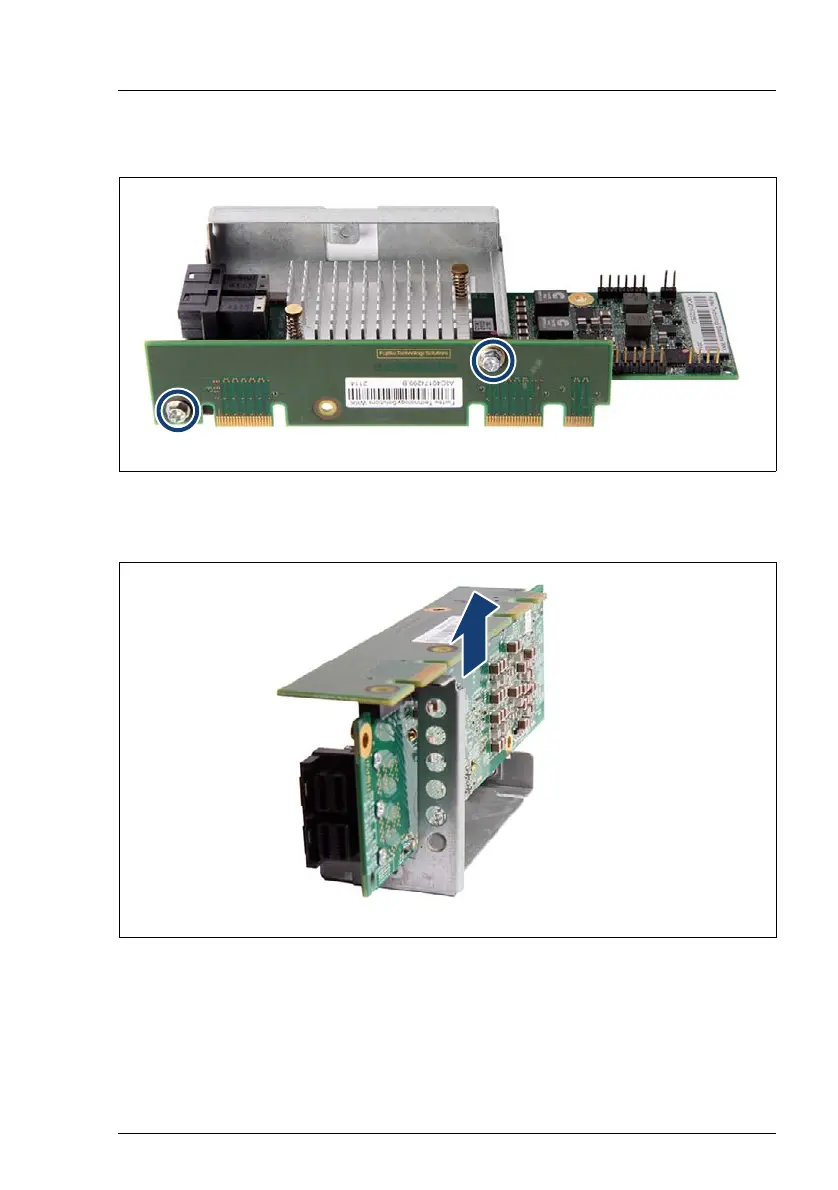

Figure 81: Removing the mounted SAS expander board (A)
Ê Remove the two screws (see circles).
Figure 82: Removing the mounted SAS expander board (B)
Ê Remove the mounted SAS expander board.
