RX2540 M2 Upgrade and Maintenance Manual 223
Hard disk drives (HDD) and solid state drives (SSD)

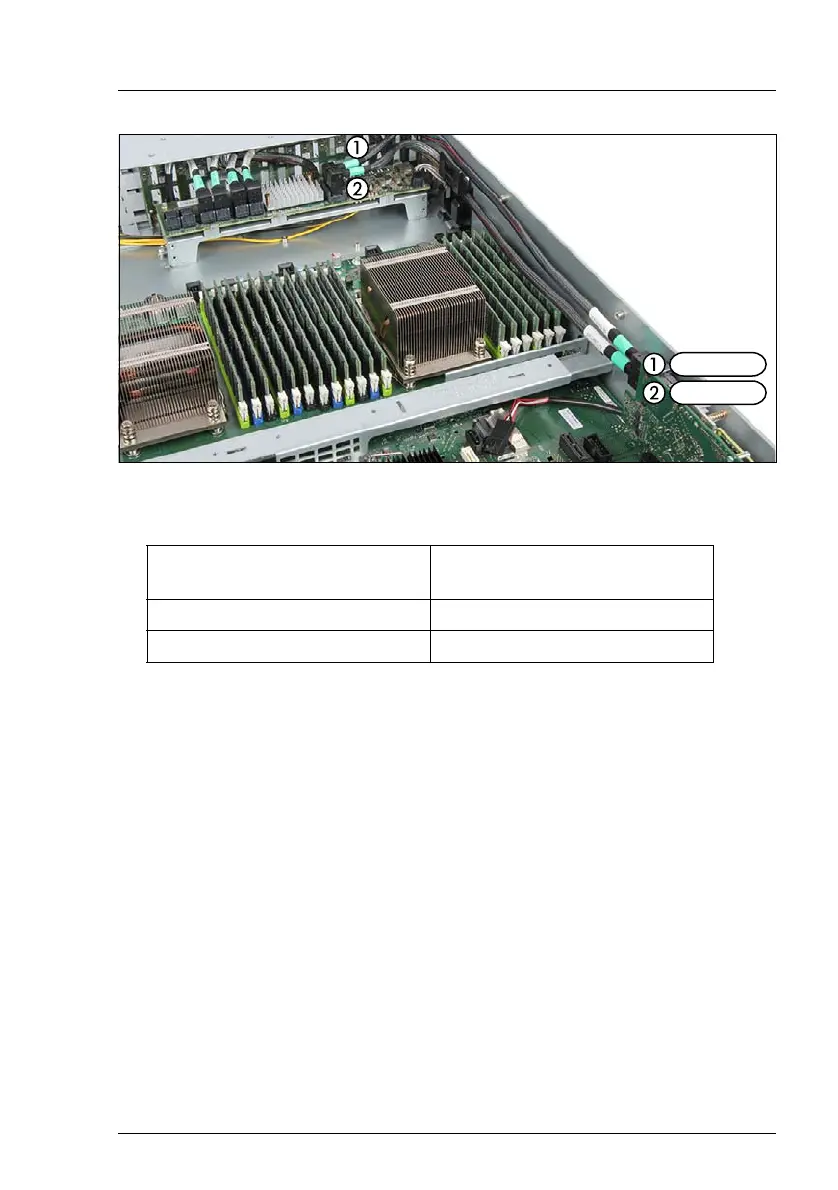

Figure 123: Connecting cables from SAS expander board to controller
Ê Connect the two SAS cables to the SAS expander board:
7.5.6.6 Concluding steps
Ê "Installing the fan box" on page 399
Ê "Reassembling" on page 73
Ê "Connecting the power cord" on page 79
Ê "Switching on the server" on page 82
Ê "Resuming BitLocker functionality" on page 120
Connector on SAS controller Connector on SAS expander
board
MLC1 X1
MLC2 X2
