Fujitsu PRIMERGY RX2540 M2

72 Upgrade and Maintenance Manual RX2540 M2
Basic hardware procedures
4.4.3 Removing the top cover

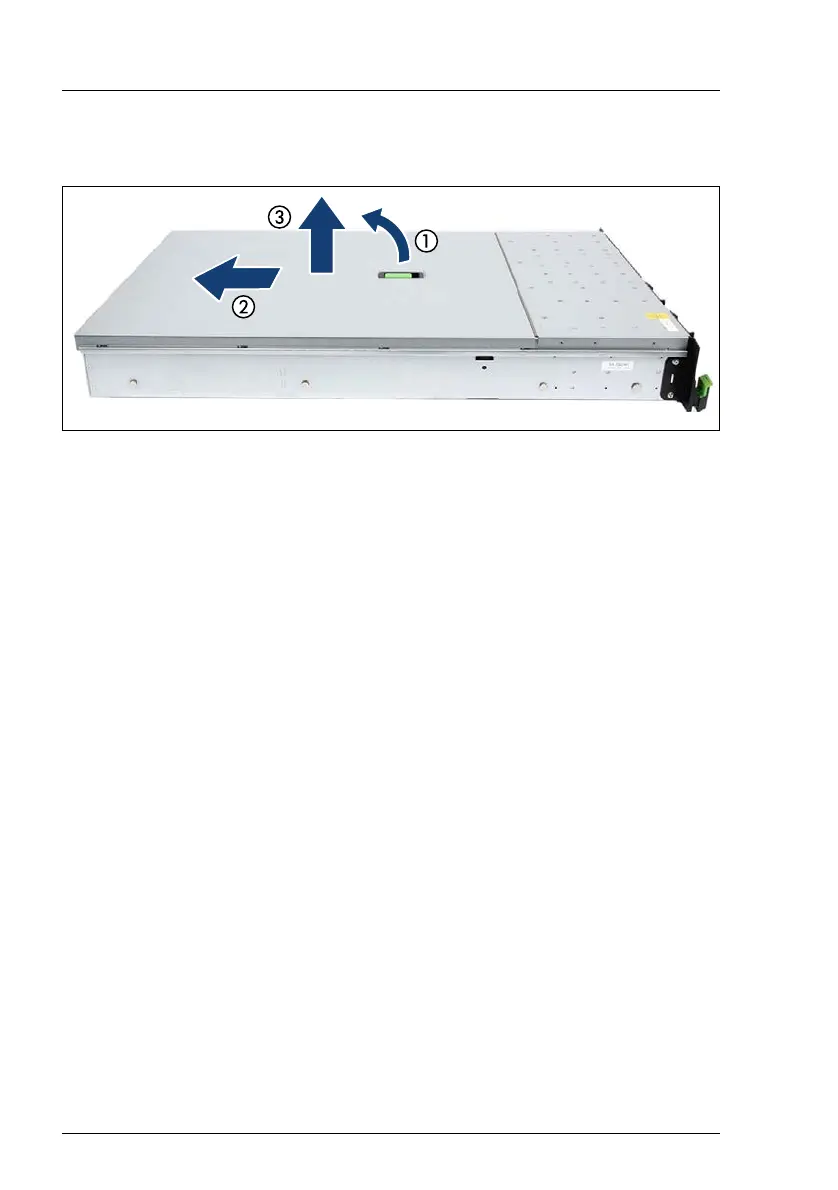

Figure 6: Removing the top cover
Ê Open the locking lever (1). This will slide the top cover back disengaging the
locking mechanism (2).
Ê Remove the top cover (3).
