206 Upgrade and Maintenance Manual RX2540 M2
Hard disk drives (HDD) and solid state drives (SSD)
– (2) from SAS controller connector MLC2 or from system board connector
SATA 7-10
Ê Connect power cables to the backplane:
– Power cable (3)
– If applicable ODD power cable (4)
– If applicable OOB cable (5)
Configuration with SAS expander board

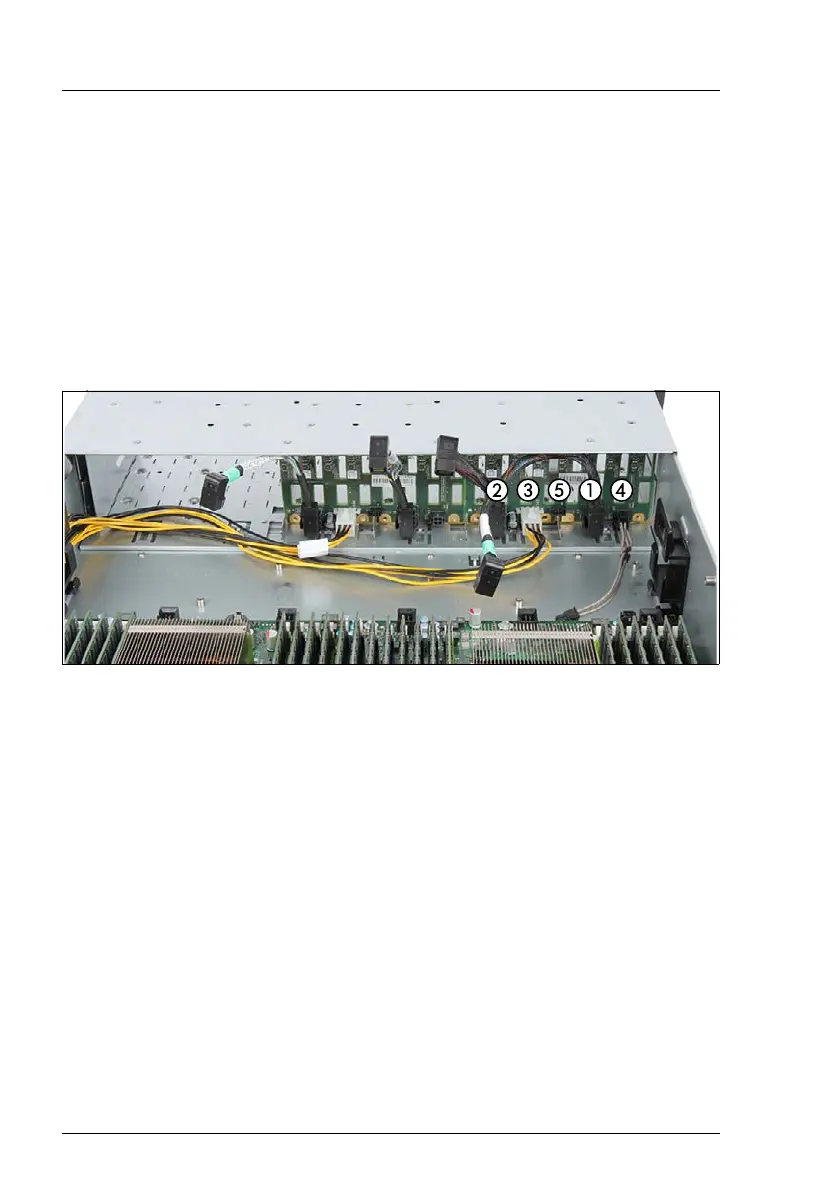

Figure 107: Connecting cables to the backplane
Ê Connect the two SAS cables to backplane 1:
– Cable T26139-Y4040-V31 to backplane connector X10 (1)
– Cable T26139-Y4040-V33 to backplane connector X9 (2)
Ê Connect power cables to the backplane:
– Power cable to (3)
– ODD power cable (4)
– If applicable OOB cable (5)
I For a complete cabling overview, please refer to section "List of used
cables" on page 559.
7.5.1.6 Concluding steps
Ê If applicable, "Installing the SAS expander holder" on page 221
