Fujitsu PRIMERGY RX2540 M2

RX2540 M2 Upgrade and Maintenance Manual 575
Cables
15.2.2.9 Configuration GPGPU M60/P100

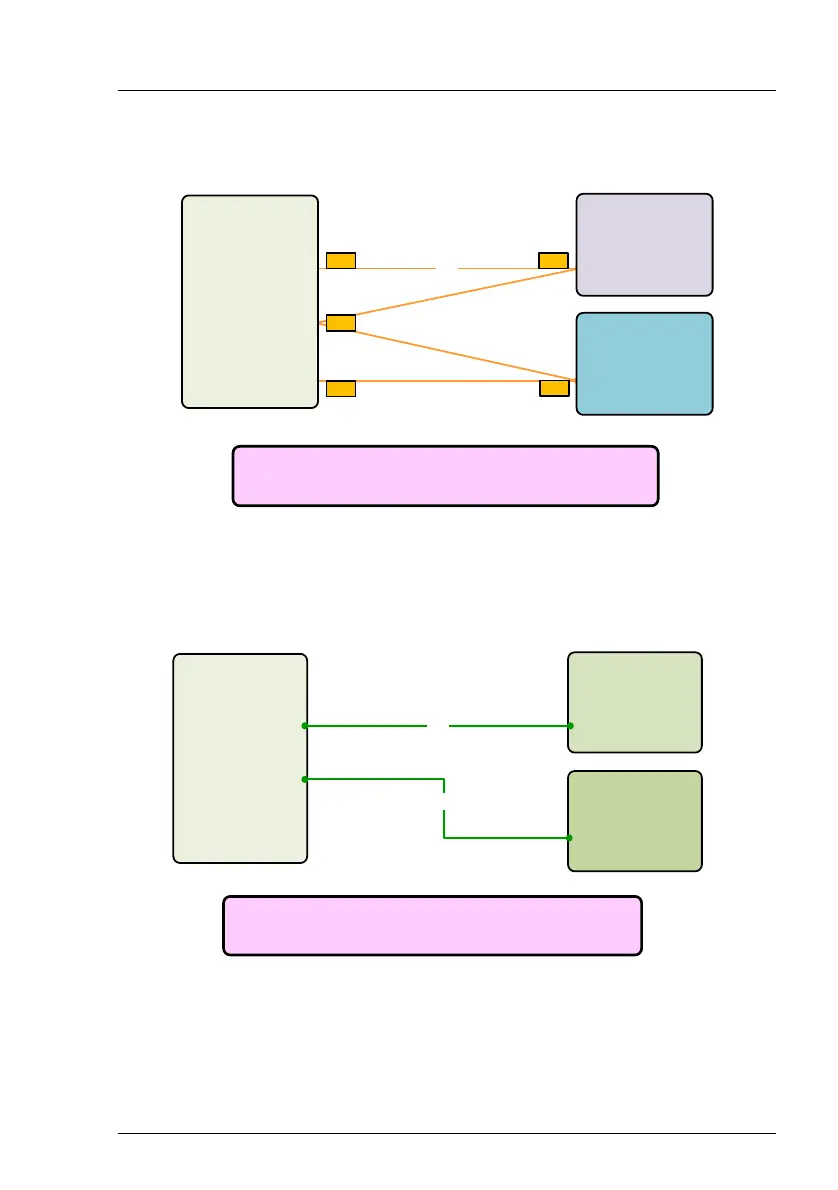

Figure 432: Cabling - GPGPU M60/P100
15.2.2.10 Configuration Quadro M4000
Figure 433: Cabling - Quadro M4000
C38
All other cables as described in the appropriate
configuration plan
P5 P4
P3
P2
P1
GPGPU M603
in riser slot 3
PWR 8-pin
PWR 12V 4
SB D3289
PWR 12V 3
PWR 12V 2 PW R 8-pin
in riser slot 9
GPGPU M603
PWR 12V 4
SB 3289
PWR 12V 3
PWR 12V 2
M4000
in riser slot 3
PWR 6- pin
PWR 6- pin
M4000
i n r i ser sl ot 9
All other cables as described in the appropriate
configuration plan
C1 0
C1 0
