298 Upgrade and Maintenance Manual RX2540 M2
Expansion cards and backup units
8.6.2.4 Removing a GPGPU card (FL)

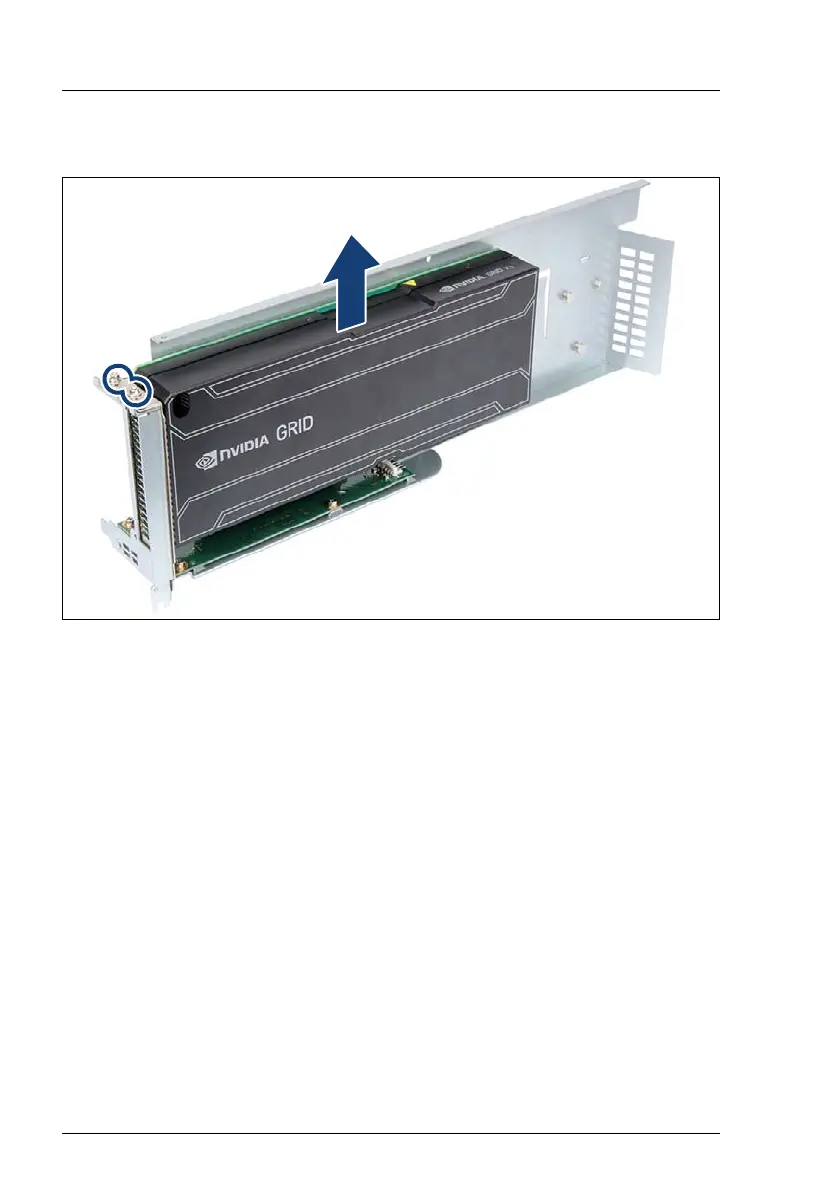

Figure 194: Removing a GPGPU card from a riser module
Ê Remove two screws (see circles).
Ê Carefully remove the GPGPU card from its slot.
8.6.2.5 Installing the slot cover riser module 1
Ê Install the slot cover as described in section "Installing the slot cover riser
module 1" on page 270.
8.6.2.6 Installing the air duct
I If no GPGPU card is installed you have to order a new air duct to direct
the airflow directly onto the CPU heat sinks and memory slots.
Ê Install the new air duct as described in section "Installing the air duct" on
page 74.
