Cables
15.2.1 3.5-inch variants
15.2.1.1 Configuration 4x 3.5-inch HDD
4x 3.5-inch HDD model with SAS3.0 RAID controller

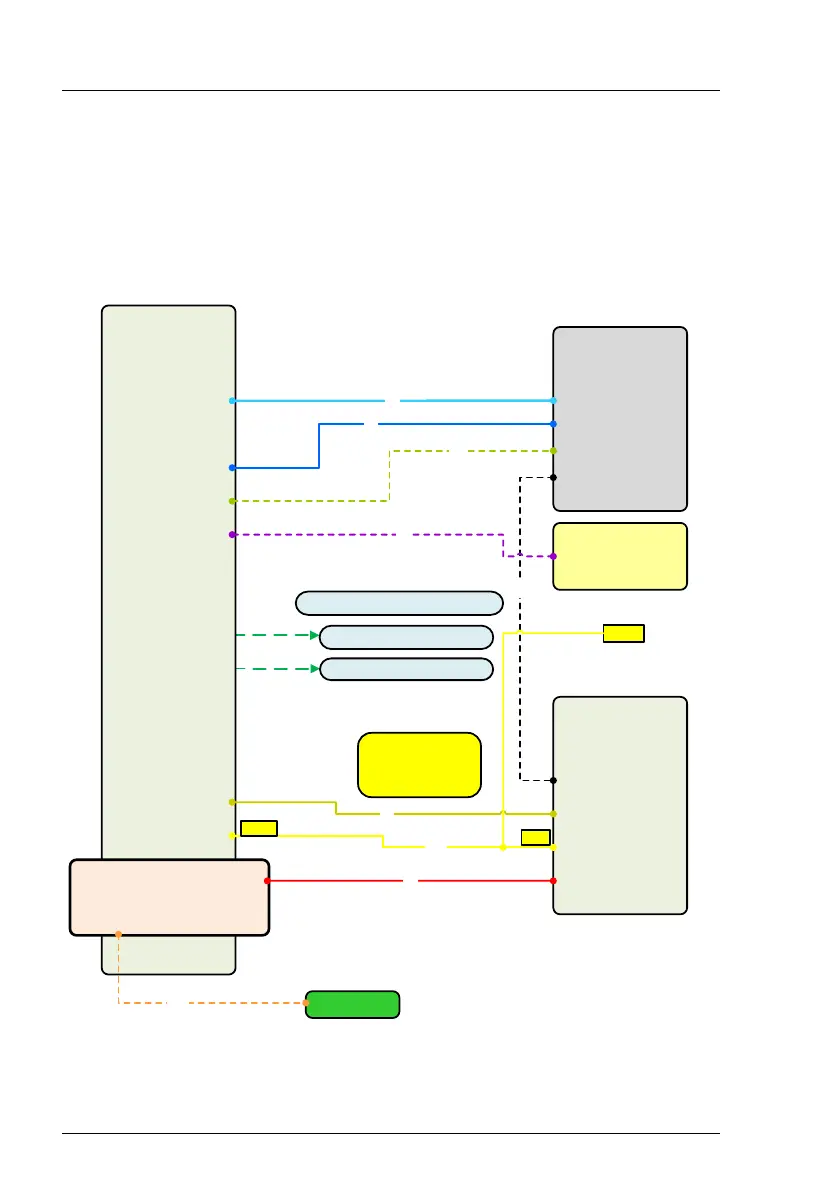

Figure 418: Cabling - 4x 3.5-inch HDD model with SAS controller
X17 (ODD PWR)
SAS BP1
4 x 3.5"
X40 (HDD PWR)
X11 (OOB)
X9 SAS/SATA
frontpanel 1
SB 3289
frontpanel 2
USB 3.0 front
SATA 5
front VGA
COM1
SATA 6 DOM
PWR 12V 4
PWR 12V 3
SATA 7-10
SATA 1-4
PWR 12V 2
PWR 12V 1
I2C5
PCIe slot 1
ODD Combo +
2x
USB 3.0
USB 3.0
ODD data
ODD PWR
frontpanel
Front VGA (opt .)
SAS 3.0
controller
FBU
FBU
C1
C2
C3
C5
C8
C6
C33
C4
C1 6
Opt PWR for riser in PCIe slot 3 *
Opt PWR for riser in PCIe slot 9 *
SB
BP1
BP 2-4
* C33 only necessary if
controller is PSAS CP400i
or onboard SATA option
or front or rear PCIe BP
* if grafic card see separate cable plan
MLC1
MLC2
