RX2540 M2 Upgrade and Maintenance Manual 159
Hard disk drives (HDD) and solid state drives (SSD)

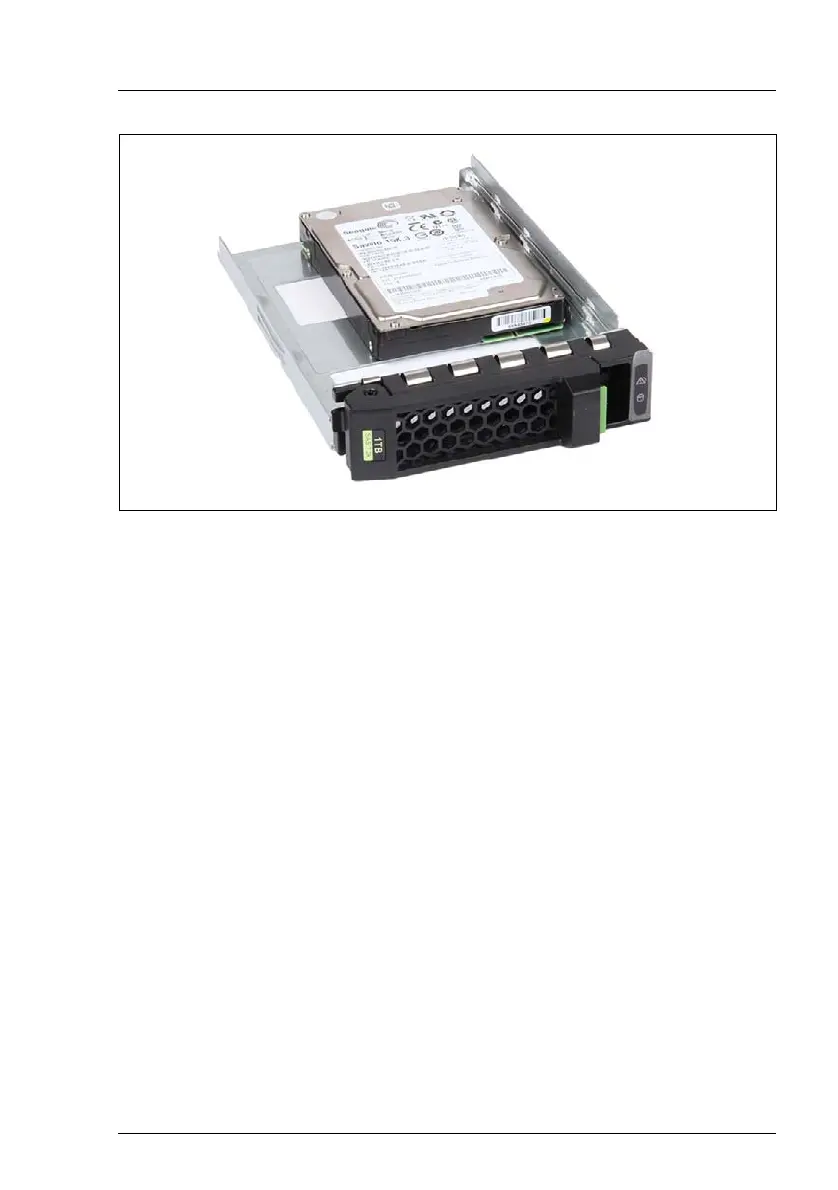

Figure 54: Removing the 2.5-inch HDD from the 3.5-inch frame (B)
Ê Turn the installation frame round while holding the 2.5-inch HDD in place.
Ê Lift the 2.5-inch HDD out of the 3.5-inch HDD installation frame.
7.2.5.4 Concluding steps
Ê "Installing 3.5-inch HDD modules" on page 147
