342 Upgrade and Maintenance Manual RX2540 M2
Expansion cards and backup units
8.9.1.2 Breaking off the metal cover

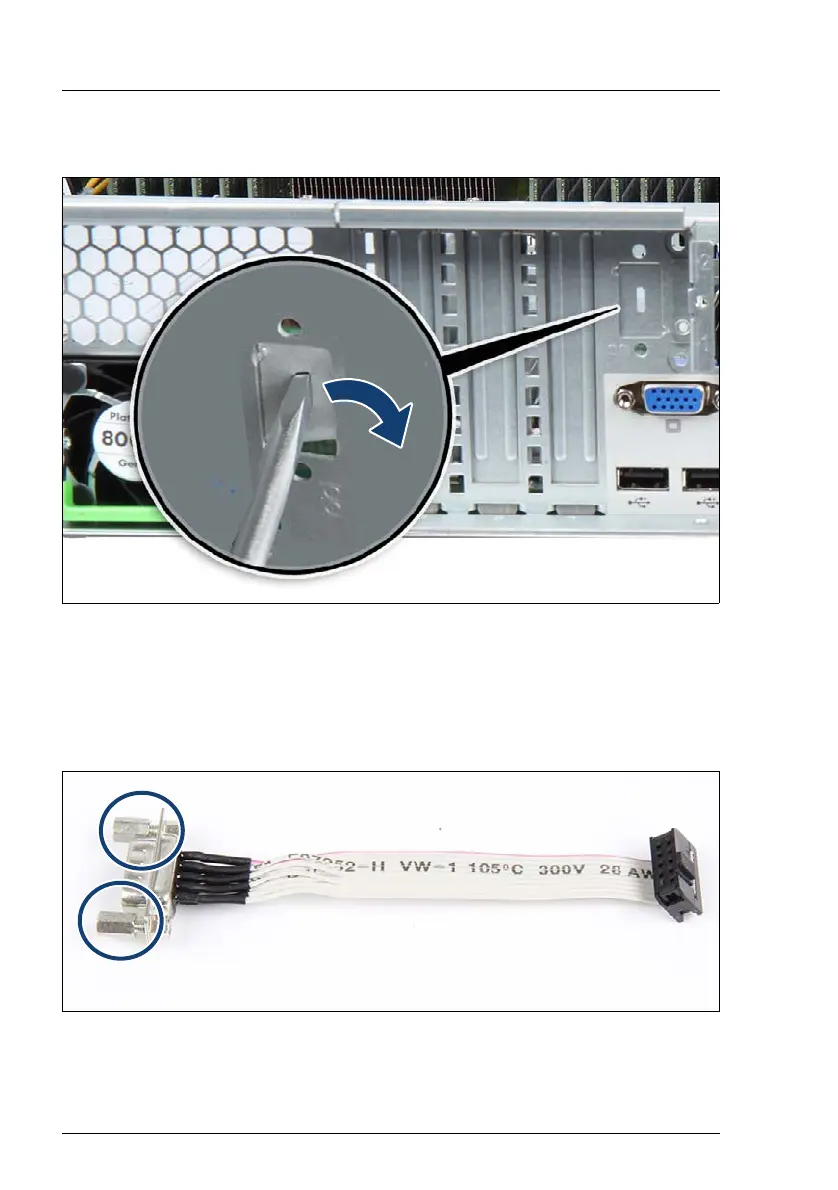

Figure 238: Removing the metal cover
Ê Twist and break off the metal cover. Use a flat screw driver to break off the
metal cover.
8.9.1.3 Installing the COM1 connector
Figure 239: Removing the bolts from the COM1 connector
Ê Remove the two bolts.
