Fujitsu PRIMERGY RX2540 M2

166 Upgrade and Maintenance Manual RX2540 M2
Hard disk drives (HDD) and solid state drives (SSD)
7.3.1.4 Removing the 4x 3.5-inch SAS HDD backplane 2

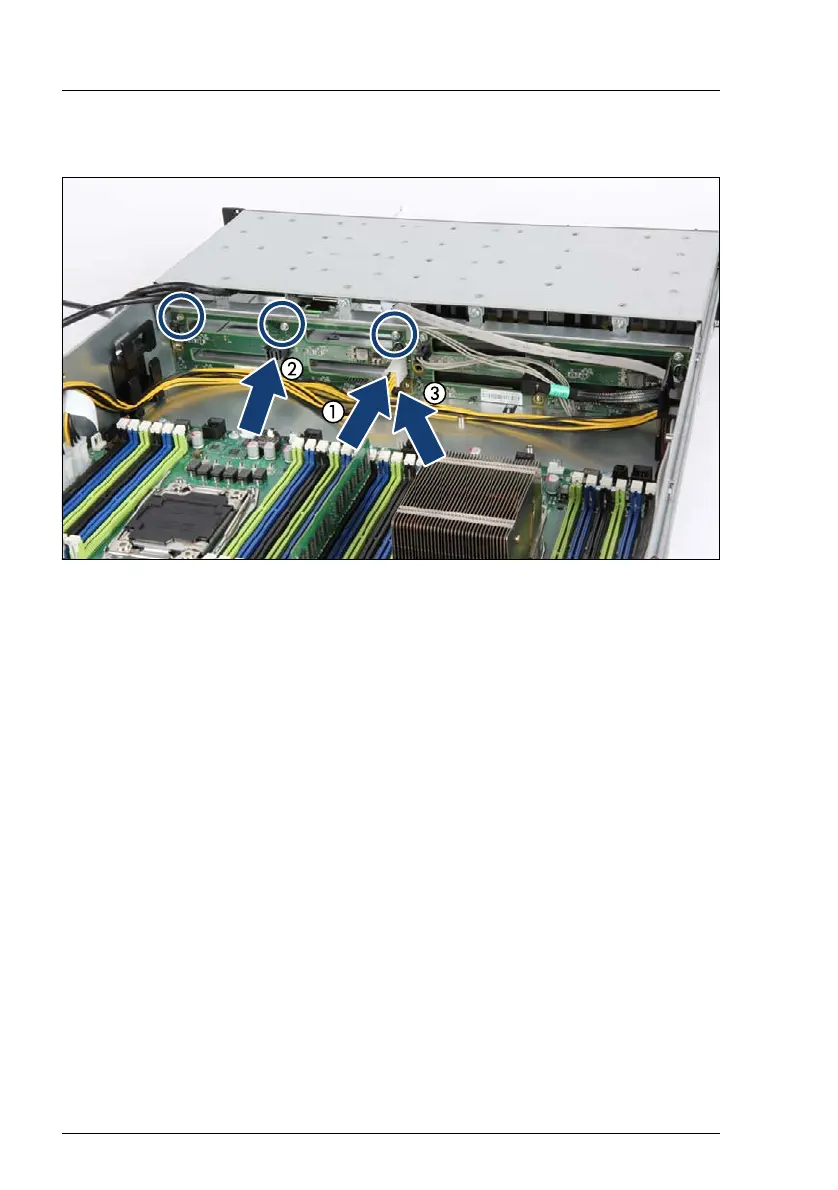

Figure 62: Disconnecting cables from the 4x 3.5-inch HDD SAS backplane
Ê Disconnect all cables from the 4x 3.5-inch HDD SAS backplane 2:
– SAS/SATA cable (1)
– Power cable (2)
– If applicable OOB cable (3)
Ê Remove the three screws.
