Fujitsu PRIMERGY RX2540 M2

RX2540 M2 Upgrade and Maintenance Manual 467
Front panel and external front connectors
13.3.1.3 Preparing the front panel module

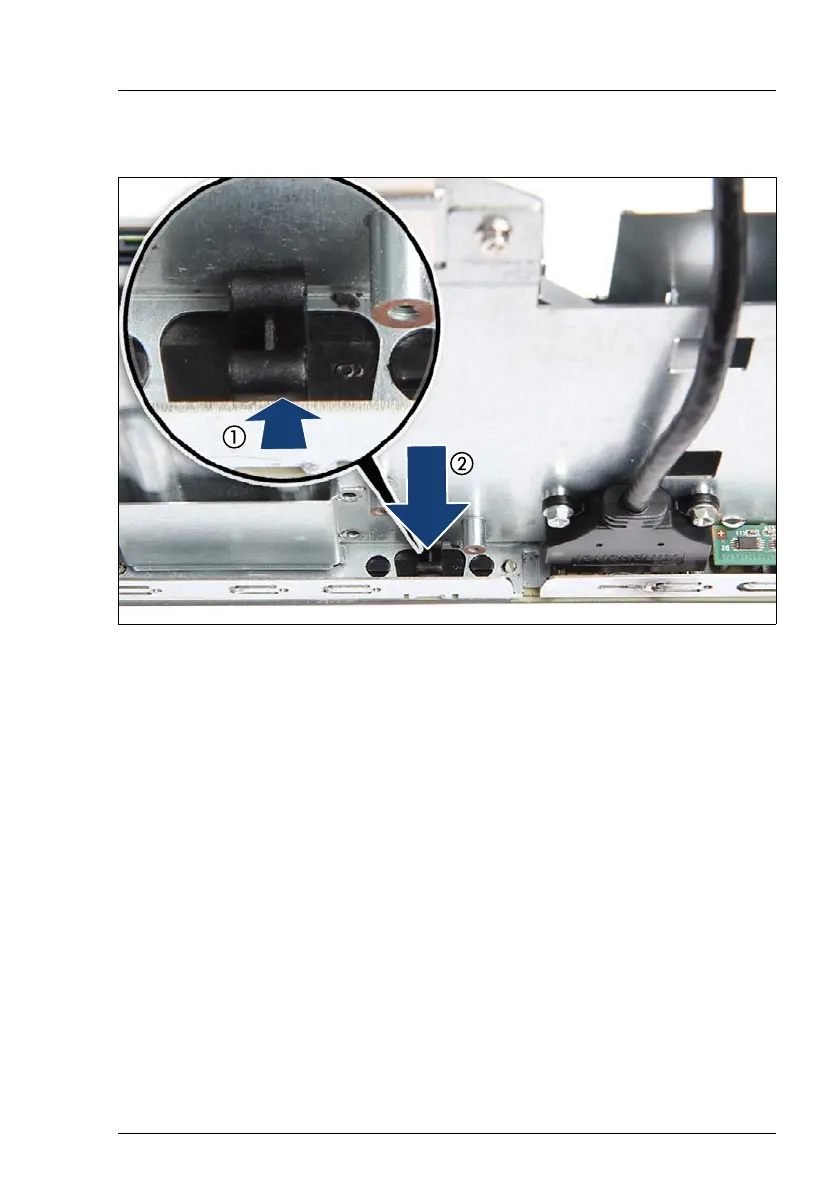

Figure 345: Removing the front VGA cover plate
Ê Insert a flat screw driver to disengage VGA cover plate from the front panel
cover (1).
Ê Remove the VGA cover plate (2).
