90 Upgrade and Maintenance Manual RX2540 M2
Basic hardware procedures
Ê If applicable, install SFP+ transceiver modules into the new expansion card,
as described in section "Installing SFP+ transceiver modules" on page 249.
Ê If applicable, connect internal cables to the expansion card.
I For a complete cabling overview, please refer to section "List of used
cables" on page 559.
Ê If applicable, connect an FBU cable to the expansion card as described in
section "Installing an FBU" on page 314.
4.8.2 Riser modules for GPGPU cards (FL)
4.8.2.1 Installing the riser module 1 (FL)

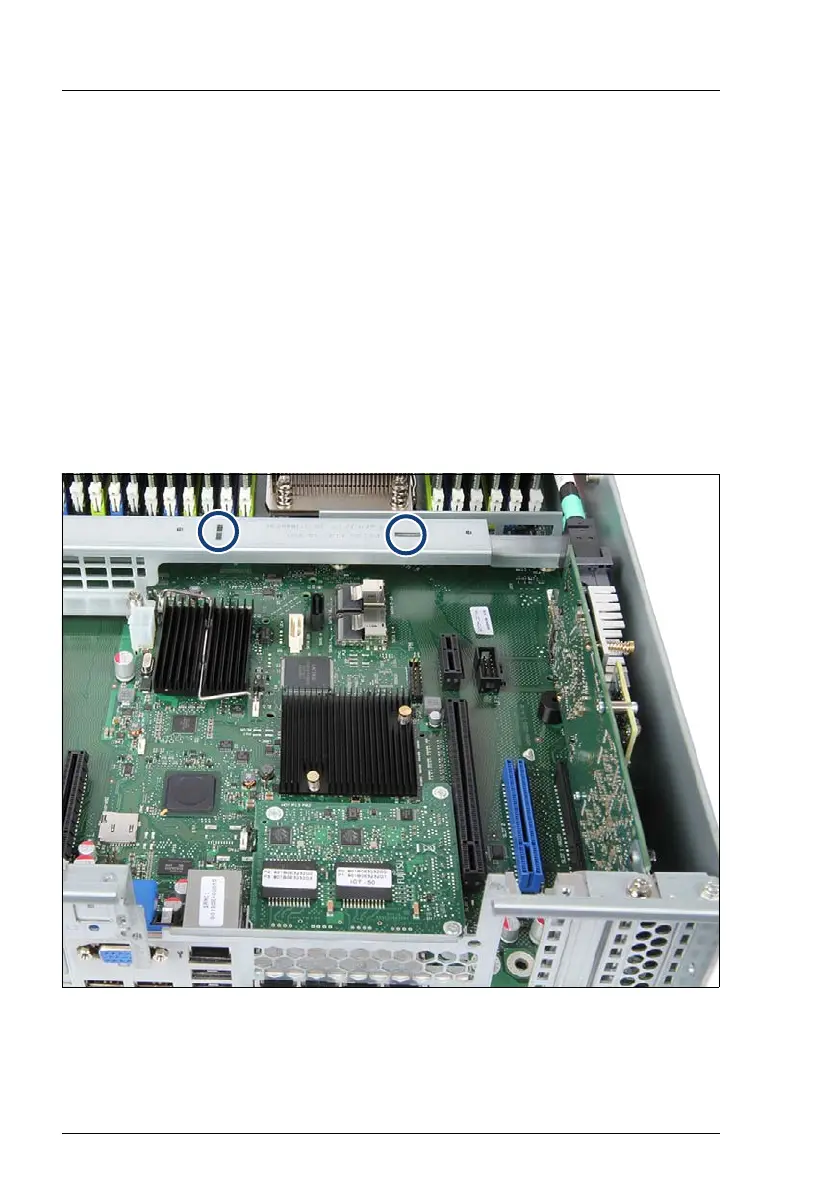

Figure 24: Positions of the recesses
Ê Take note of the two recesses in the stabilizer bar (see circles).
