RX2540 M2 Upgrade and Maintenance Manual 83
Basic hardware procedures
4.8 Handling riser modules
Note for installation with expansion cards in slot 5 and slot 11

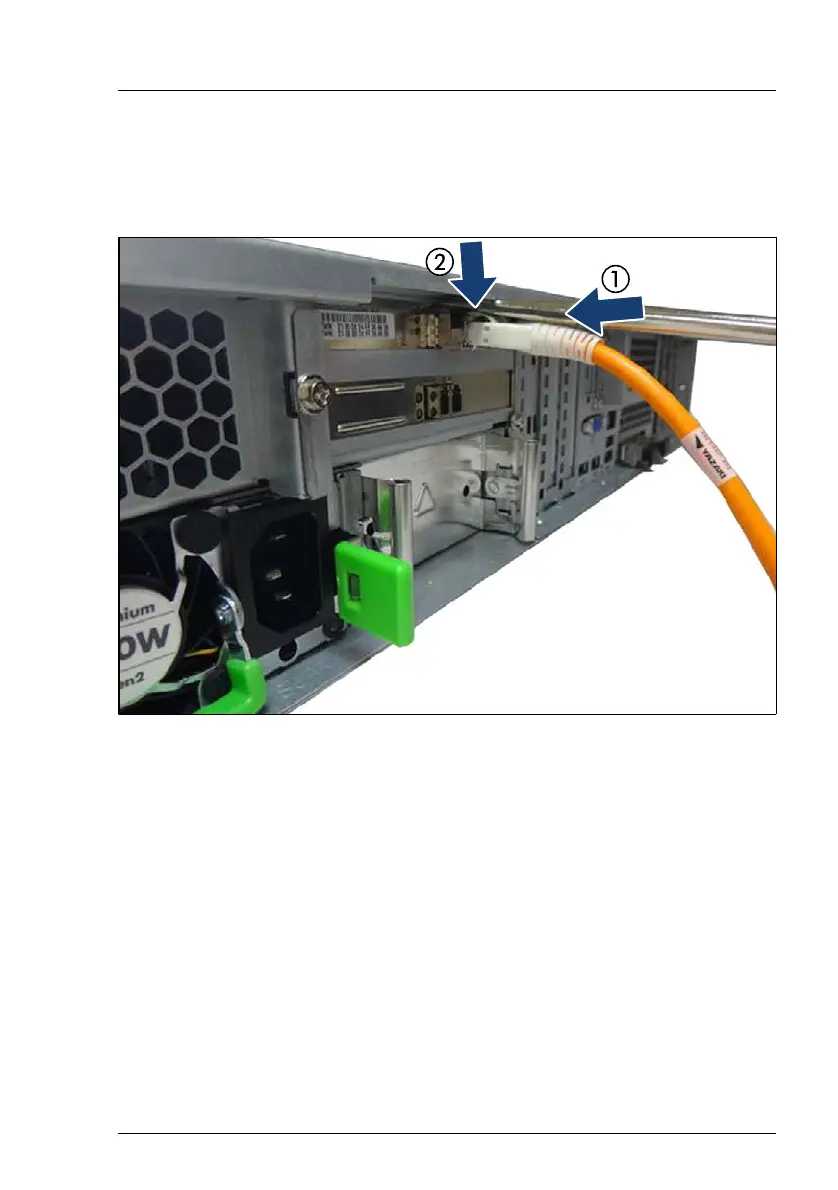

Figure 14: Removing a connector from an expansion card in a riser in slot 5 or 11
Ê Insert a small tool (e.g. a small slotted screw driver) in the gap between the
connector and the housing (1).
Ê Press down the locking mechanism (2).
