RX2540 M2 Upgrade and Maintenance Manual 211
Hard disk drives (HDD) and solid state drives (SSD)
Ê "Suspending BitLocker functionality" on page 95
Ê "Shutting down the server" on page 65
Ê "Disconnecting the power cord" on page 66
Ê Remove all SSD modules from the server front as described in section
"Removing 2.5-inch HDD/SSD modules" on page 197.
V CAUTION!
Ensure that all HDDs are uniquely identified so that you can reinsert
them into their original bays after replacing the HDD backplane.
Ê "Getting access to the component" on page 68
Ê "Removing the fan box" on page 397
7.5.3.2 Installing the 4x 2.5-inch PCIe SSDbackplane

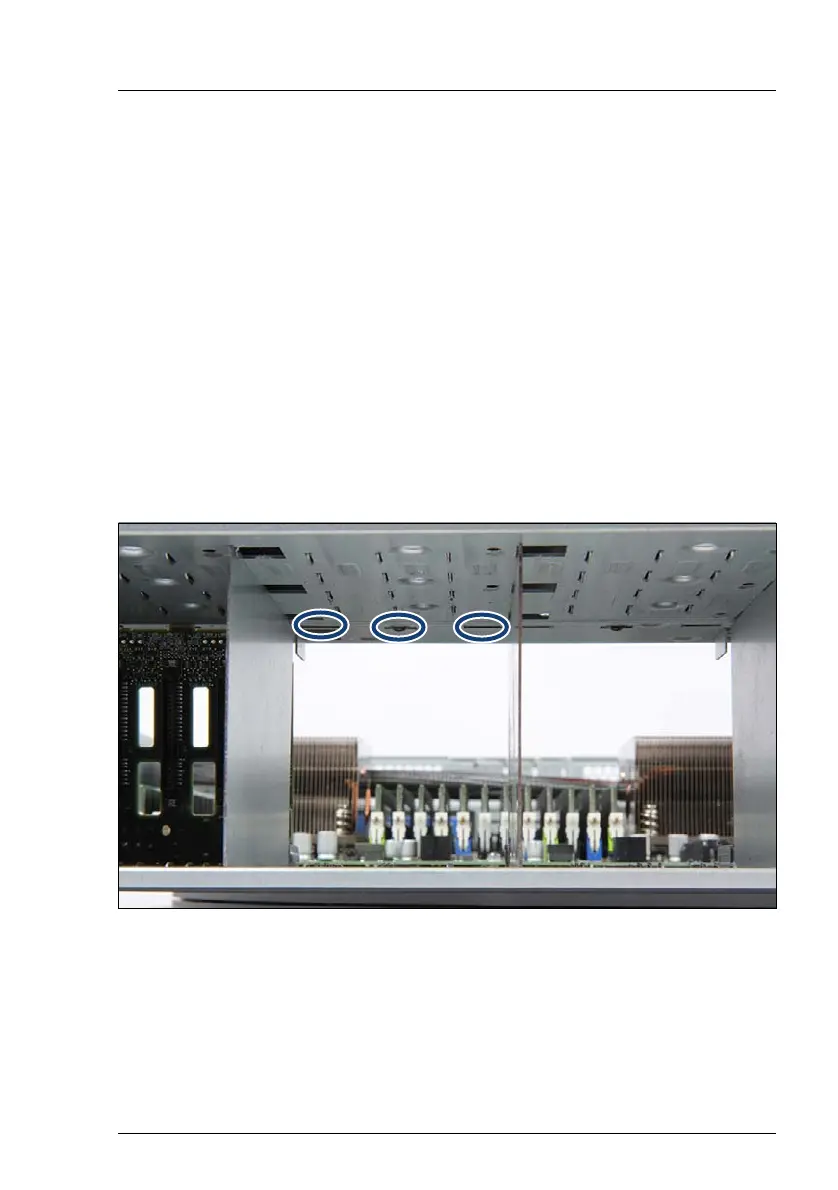

Figure 111: Recesses at the top for the 2.5-inch PCIe backplane
Ê Regard the three recesses at the top.
