16.1.2 Server rear

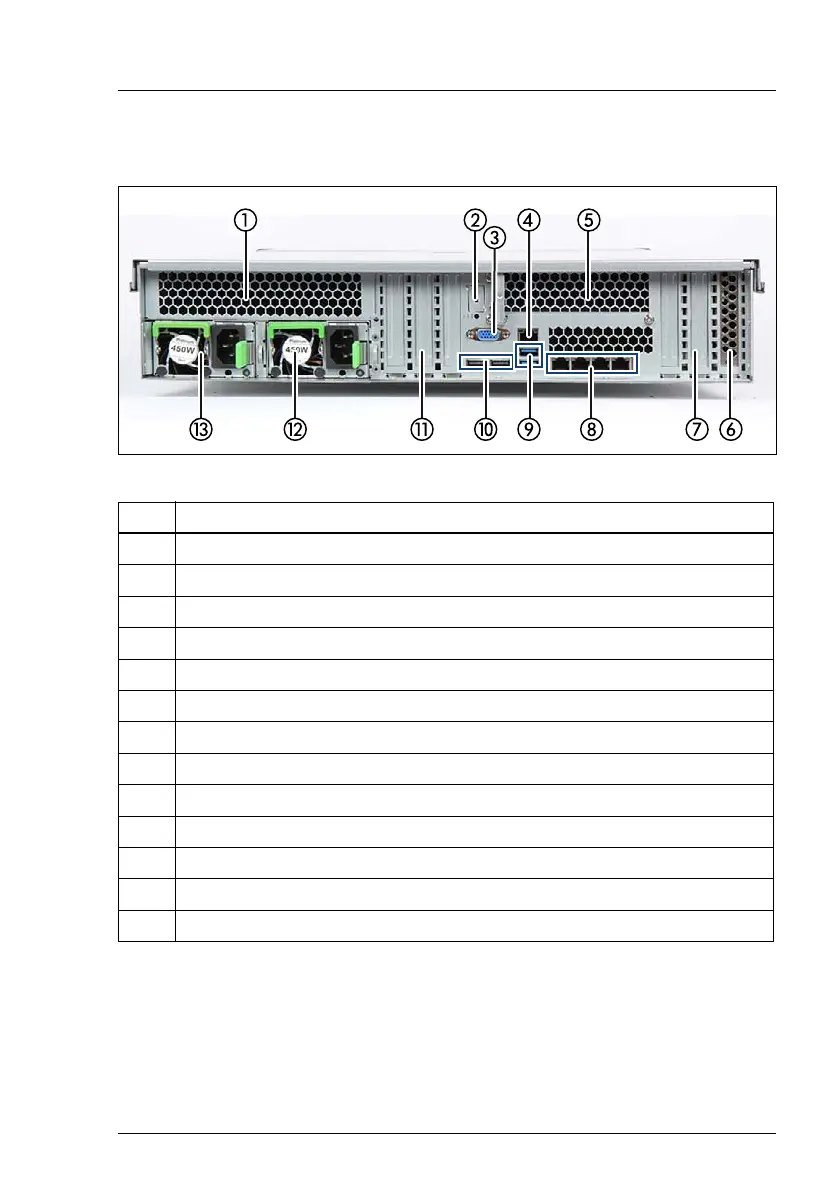

Figure 439: PRIMERGY RX2540 M2 rear
Pos. Component
1 Installation location for riser module 2 (optional)
2 COM1 connector (optional)
3 Video connector
4 Management LAN connector
5 Installation location for riser module 1(optional)
6 RAID controller (Slot 1)
7 Optional expansion card (Slot 2-3)
8 DynamicLoM connectors
9 USB3.0
10 USB2.0
11 Optional expansion card (Slot 7-9)
12 PSU 2
13 PSU 1
