Fujitsu PRIMERGY RX2540 M2

220 Upgrade and Maintenance Manual RX2540 M2
Hard disk drives (HDD) and solid state drives (SSD)
7.5.6.3 Removing the SAS expander board

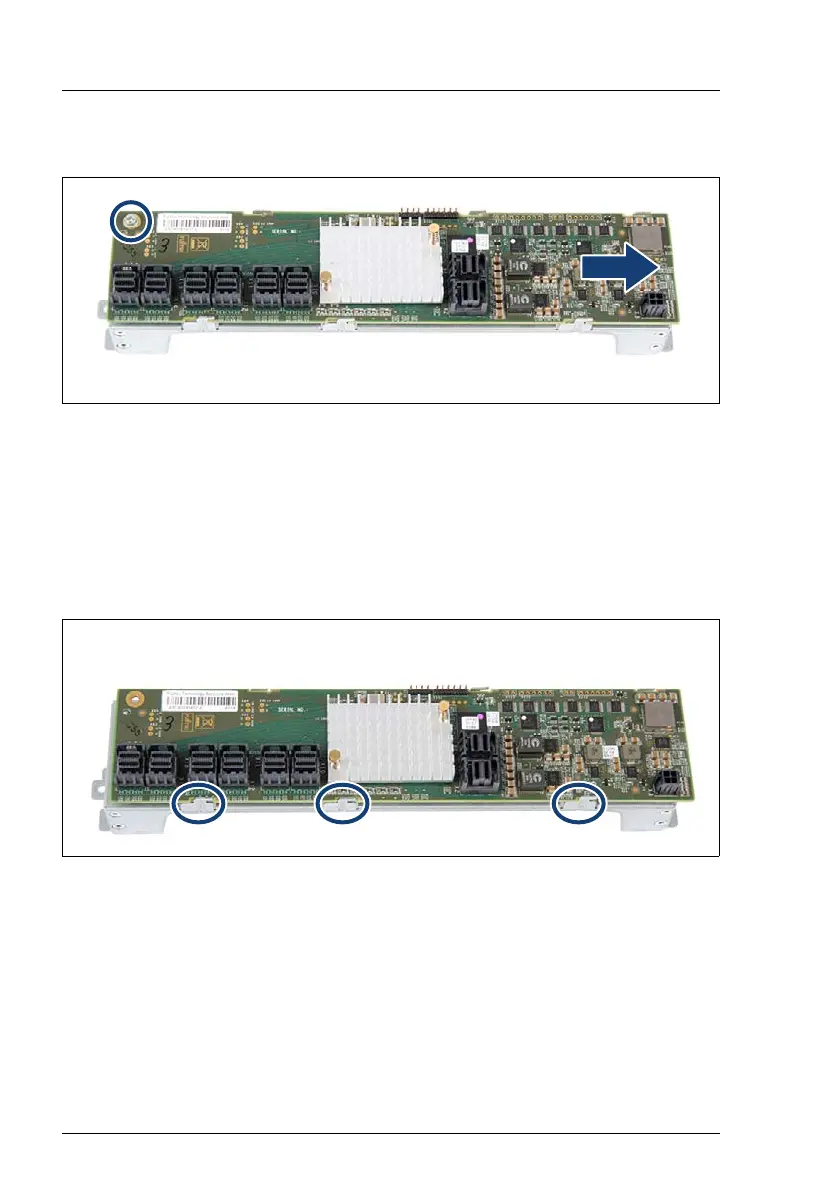

Figure 118: Removing the SAS expander board
Ê Remove one screw (see circle).
Ê Push the SAS expander board in the direction of the arrow.
Ê Take off the SAS expander board from the SAS expander holder.
7.5.6.4 Installing the SAS expander board
Figure 119: Positioning the SAS expander board
Ê Position the SAS expander board on the SAS expander holder (see circles).
