Fujitsu PRIMERGY RX2540 M2

RX2540 M2 Upgrade and Maintenance Manual 183
Hard disk drives (HDD) and solid state drives (SSD)
7.3.4.4 Installing the new SAS expander board

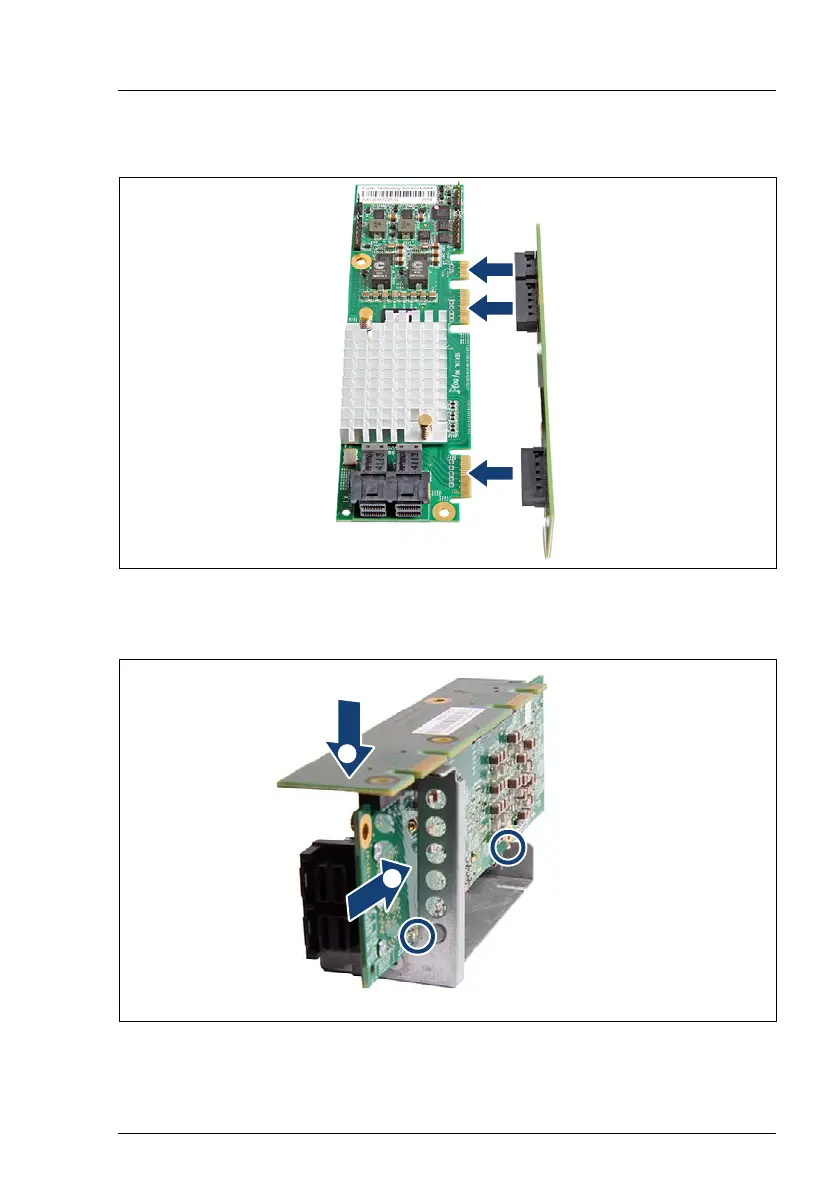

Figure 84: Connecting the connector card
Ê Connect the connector card with the SAS expander board.
Figure 85: Installing the mounted SAS expander board
햲
햳
