Fujitsu PRIMERGY RX2540 M2

156 Upgrade and Maintenance Manual RX2540 M2
Hard disk drives (HDD) and solid state drives (SSD)

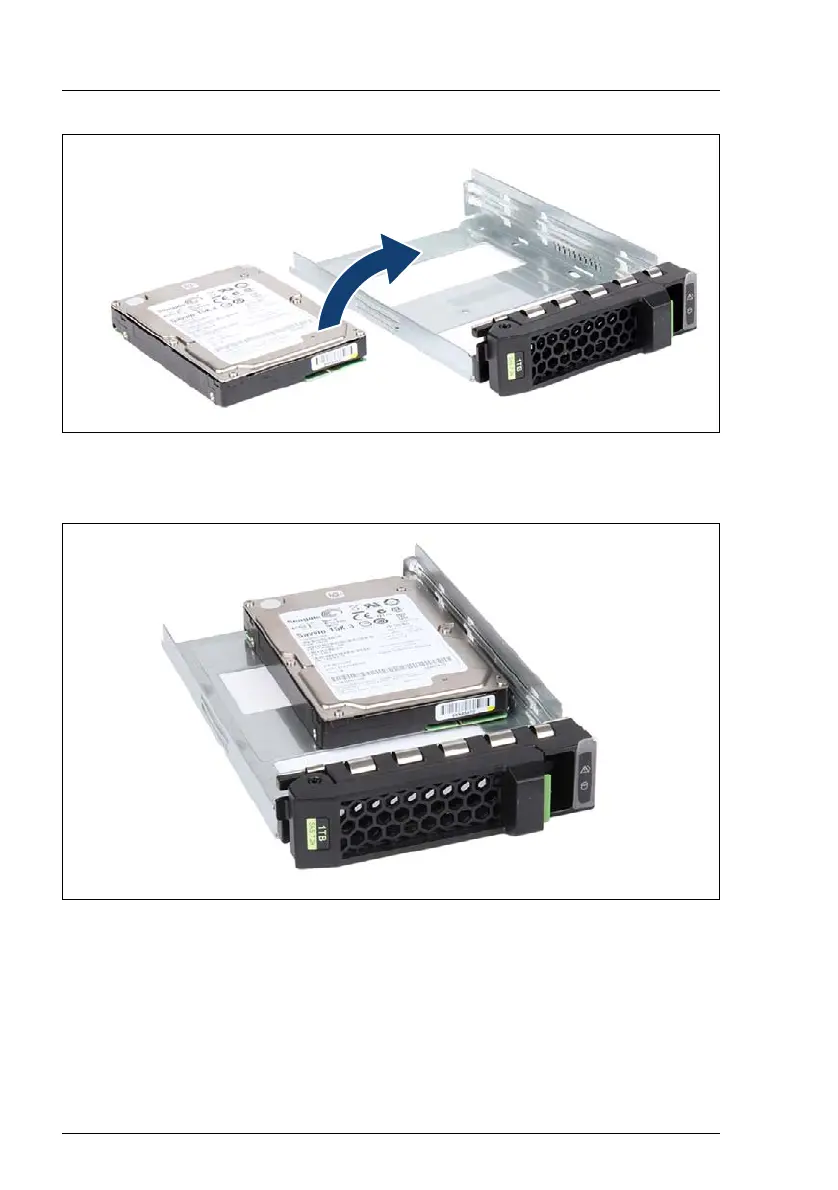

Figure 50: 2.5-inch HDD module and 3.5-inch installation frame
Ê Lay the 2.5-inch HDD into the 3.5-inch HDD installation frame as shown.
Figure 51: Installing the 2.5-inch HDD in the 3.5-inch frame (A)
